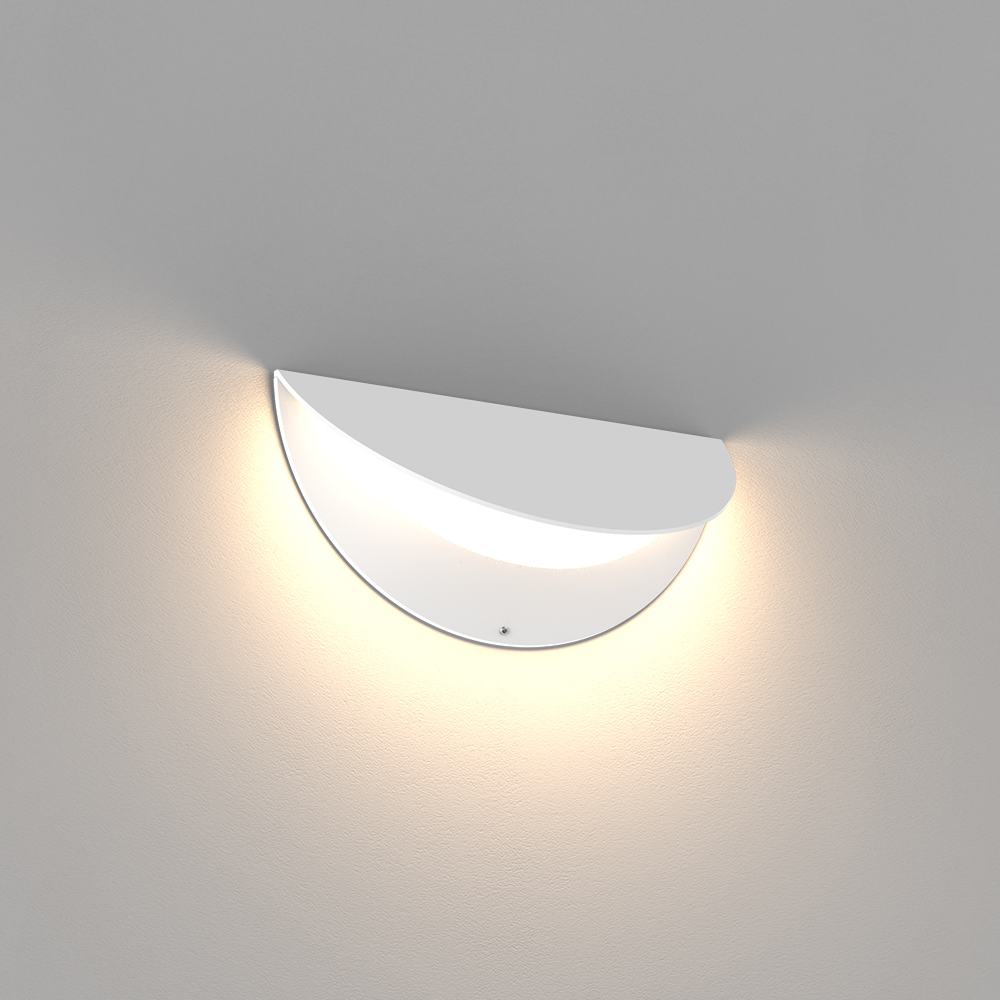

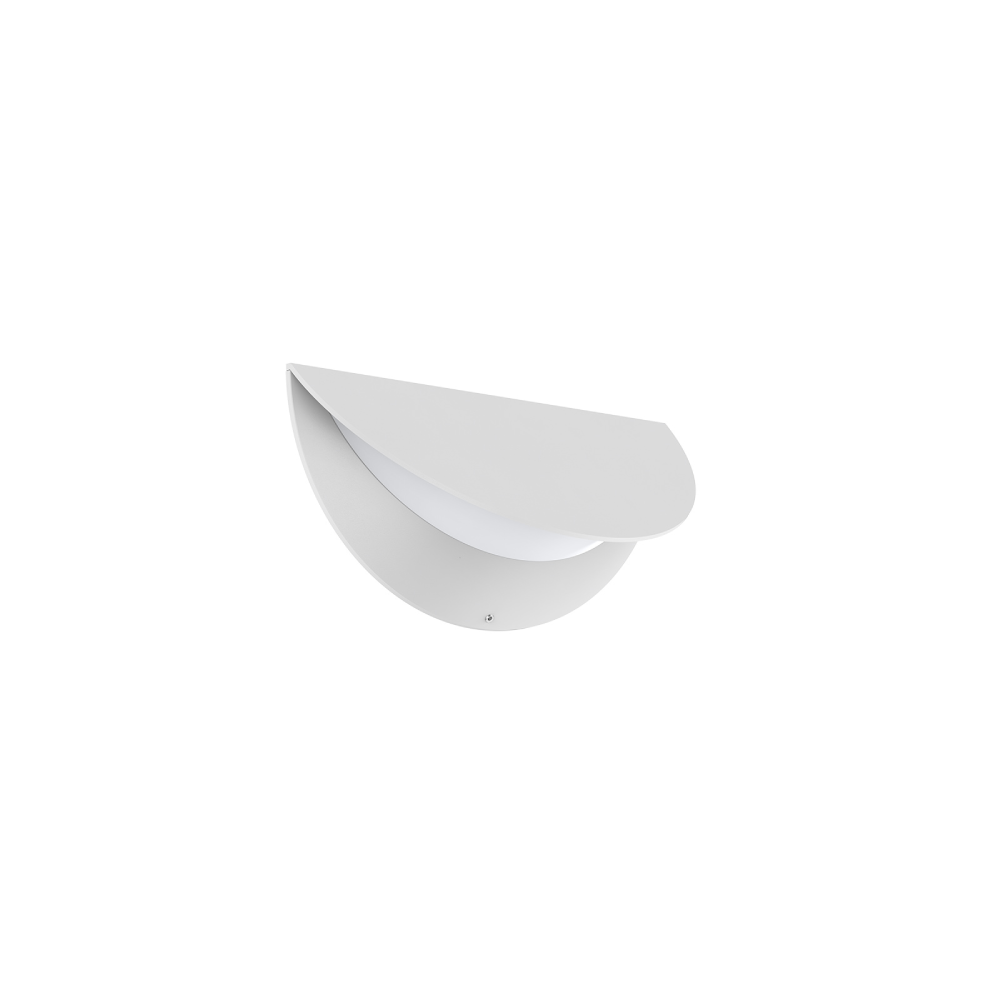

WL99 is a modern stylish indoor wall lamp. It has a shell shape and looks exquisite, which is suitable for lighting decoration. Adopt 2835 SMD light source, PC cover makes a soft light output. ADC12 aluminum housing offers great thermal management.
1.Exquisite design with shell shape.
2.Internal flicker free driver.
3.Dimming ways: Non-dim, triac dim. 4.Quick installation with fast connector.
Application Areas: It’s widely used in indoor corridor, study room, bedroom, lobby etc
| Code No. | WL99-10W | WL99-10W-D |
|---|---|---|
| Dimension(mm) | 205*103*75 | |
| Watt(W) | 10W | |
| Rated Input Voltage(V) | AC100-240 | AC220-240 |
| Input Voltage(V) | AC100-240 | AC230 |
| Light Source | SMD | |
| SDCM | <6 | |
| CCT(K) | 1-CCT:3000K/4000K/5000K/5700K | |
| CCT Selection DIP Switch | NO | |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% (White color) | 550-750 | - |
| DIM 1-CCT Luminous Flux (lm) ±5% (White color) | - | 550-700 |
| CRI | >80 | |
| Beam Angle (°) | 1200 | |
| LED Driver | Built-in | |
| Dimming Option | - | Triac |
| Electrical Class | Class I | |
| Ingress Protection (IP Rating) | IP20 | |
| Impact Resistance (IK Rating) | IK06 | |
| Product Finishing(Base) | White RAL9016 | |
| Optics Material | PC | |
| Housing Material | ADC12 | |
| Lifetime (hr) | 50,000h | |
| Glow wire test (℃ ) | 750℃ | |
| Operating Temp. (℃ ) | -20℃ ~45℃ | |
| Storage Temp. (℃ ) | -40℃ ~60℃ | |
| Installation | wall mount | |
