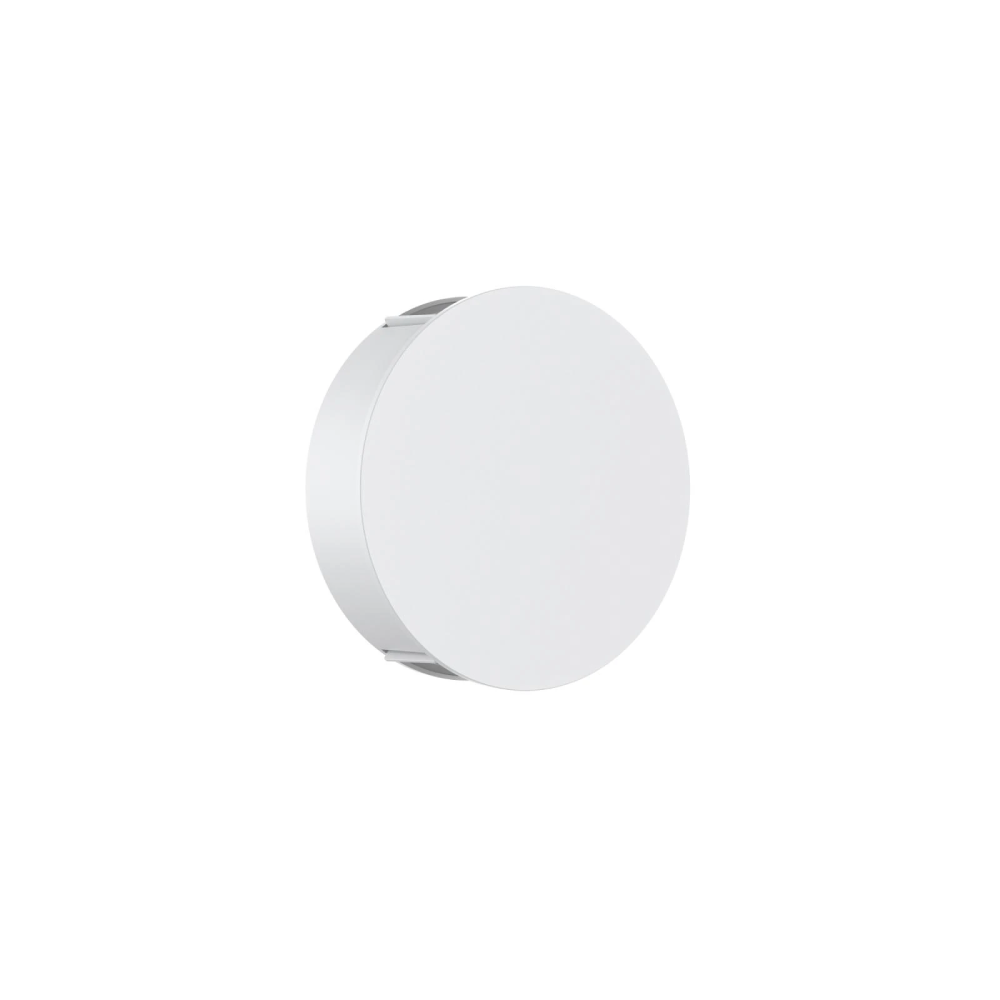

| CODE | WL162-8W | ||
|---|---|---|---|
|
Dimension(mm) |
Ø145*41mm |
||
|
Cutout(mm) |
- |
||
|
Watt(W) |
2*4W |
||
|
Input Voltage |
AC220-240V |
||
|
LED Module Input |
- |
||
|
Light Source |
COB |
||
|
CCT(K) |
1-CCT: 3000K / 4000K || 3-CCT: 3000K-4000K-5000K |
||
|
CCT Selection DIP Switch |
YES |
||
|
Luminous Flux (lm) ±5% CRI80 |
1-CCT |
Non-DIM |
470-560 |
|
DIM |
400-490 |
||
|
Luminous Flux (lm) ±5% CRI90 |
3-CCT |
Non-DIM |
310-420 |
|
DIM |
270-380 |
||
|
Beam Angle (°) |
0°-70° |
||
|
UGR |
- |
||
|
Dimming Option |
Triac |
||
|
Sensor |
- |
||
|
Emergency |
- |
||
|
Product weight(Kg) |
N.W/PC |
0.525 |
|
|
G.W/PC |
0.648 |
||
|
Package weight(Kg) |
N.W/CTN |
6.30 |
|
|
G.W/CTN |
8.4 |
||
|
Qty/CTN (PCS) |
12 |
||
|
Carton Size(cm) |
38*34.5*20.5 |
||
|
20GP(pcs) |
11520 |
||
|
40HQ(pcs) |
28512 |
||
(NON-DIMMABLE)
| Total load wattage | 8W | |
|---|---|---|
|
Output |
Rated output current |
200mA |
|
Output Voltage range |
DC30-40V |
|
|
Line Regulation |
±5% |
|
|
Setup Rise Time |
≤500ms @230V |
|
|
Flickering Index |
<1%(NO RISK) |
|
|
IEC-PST |
<1 |
|
|
CIE (SVM) |
≤0.4 |
|
|
Input |
Rated Input Voltage |
AC220-240V |
|
Input Voltage |
AC198-264V |
|
|
Frequency |
50/60Hz |
|
|
Rated Input Current |
≤0.05A |
|
|
Input Current |
≤0.05A |
|
|
Power Factor |
0.9 |
|
|
THD |
- |
|
|
Efficiency |
≥85% |
|
|
Inrush current |
13.6A,175us |
|
|
No load wattage |
<0.5W @230V |
|
|
Stand-by power consumption |
- |
|
|
Protection |
Short circuit protection |
PASS |
|
Over voltage protection |
PASS |
|
|
Over temperature protection |
PASS |
|
|
Safety & EMC |
Withstand voltage |
I/P-FG:1.5KVac,<5mA 60S |
|
Isolation Resistance |
500VDC, ≥2M Ω |
|
|
Surge |
IEC/EN61000-4-5 (L-N:1KV, L/N-PE:2KV) |
|
|
EMC Emission |
EN55015, EN61000-3-2 |
|
|
EMC Immunity |
EN61000-4-2,3,4,5,6,8,11; EN61547 |
(TRIAC DIMMABLE)
| Total load wattage | 8W | |
|---|---|---|
|
Output |
Rated output current |
180mA |
|
Output Voltage range |
DC23-40V |
|
|
Line Regulation |
±5% |
|
|
Setup Rise Time |
≤500ms @230V |
|
|
Flickering Index |
<5%(LOW RISK) |
|
|
IEC-PST |
<1 |
|
|
CIE (SVM) |
≤0.4 |
|
|
Input |
Rated Input Voltage |
AC220-240V |
|
Input Voltage |
AC198-264V |
|
|
Frequency |
50Hz |
|
|
Rated Input Current |
≤0.05A |
|
|
Input Current |
≤0.05A |
|
|
Power Factor |
0.9 |
|
|
THD |
- |
|
|
Efficiency |
≥78% |
|
|
Inrush current |
1.68A,42.4us |
|
|
No load wattage |
<1W @230V |
|
|
Stand-by power consumption |
- |
|
|
Protection |
Short circuit protection |
PASS |
|
Over voltage protection |
PASS |
|
|
Over temperature protection |
PASS |
|
|
Safety & EMC |
Withstand voltage |
I/P-FG:1.5KVac,<5mA 60S |
|
Isolation Resistance |
500VDC, ≥2M Ω |
|
|
Surge |
IEC/EN61000-4-5 (L-N:1KV, L/N-PE:2KV) |
|
|
EMC Emission |
EN55015, EN61000-3-2 |
|
|
EMC Immunity |
EN61000-4-2,3,4,5,6,8,11; EN61547 |
