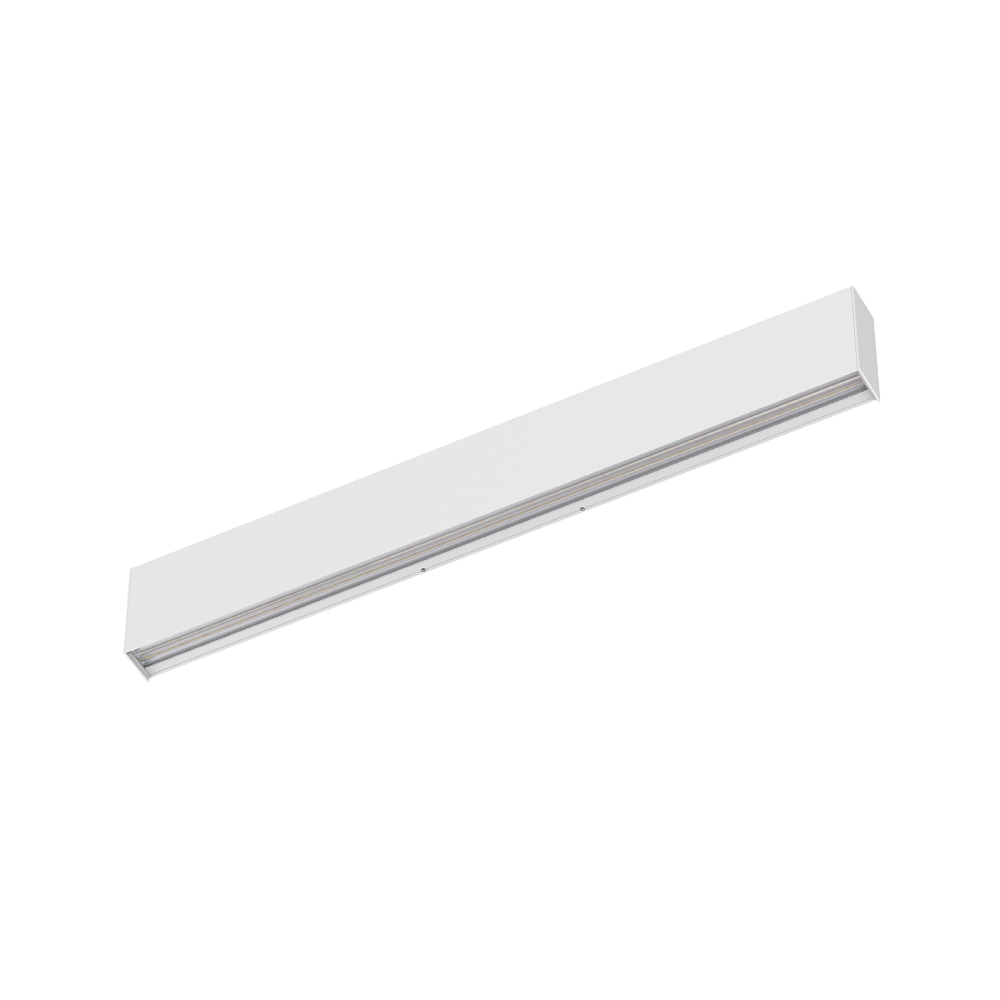

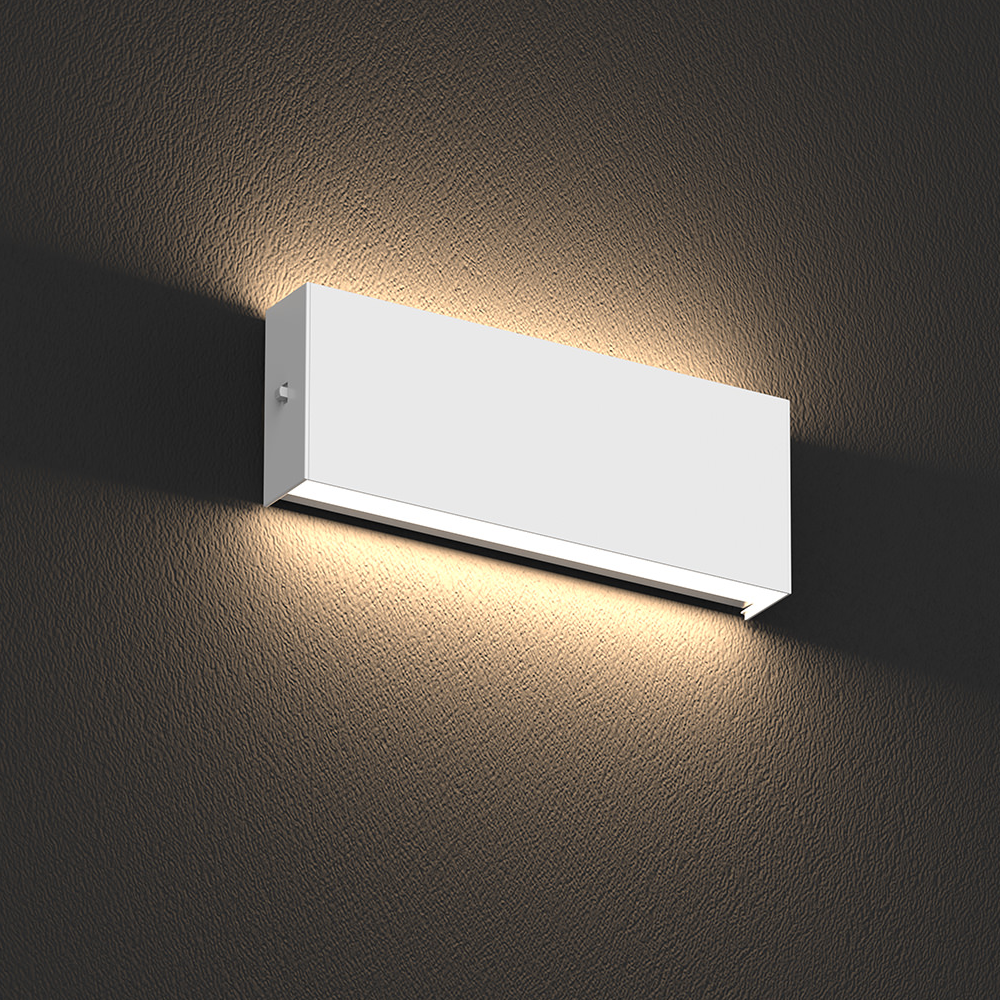

WL146 is an ultra-thin design that has multiple length options. It adopted high-lumen SMD light, and wall-washing design for optical effect, so it can do higher and further lighting. For the material part, it adopted AL6063 Aluminium which offers a great heat dissipation. Besides, it is an up-and-down lighting design that can achieve a better atmosphere. Quick install with male plug+female plug, fast connector, which makes easier installation and maintenance.
Application Areas: It is designed for indoor lighting applications such as stairways, corridors, bedrooms, study rooms, etc.
| Code No. | WL146-180-8W | WL146-240-10W | WL146-360-16W | WL146-600-20W |
|---|---|---|---|---|
| Dimension(mm) | 180*38.5*90 | 240*38.5*90 | 360*38.5*90 | 600*38.5*90 |
| Watt(W) | 2x4W | 2x5W | 2x8W | 2x10W |
| Rated Input Voltage(V) | AC230V | |||
| Input Voltage(V) | AC220-240V | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT:3000K/4000K/5000K | |||
| 2-CCT:3000K+4000K | ||||
| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 700-1000 | 900-1200 | 1500-1900 | 1900-2300 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 650-950 | 850-1150 | 1400-1800 | 1800-2200 |
| (White color) Non-DIM 2-CCT Luminous Flux (lm) ±5% | 700-1000 | 900-1200 | 1500-1900 | 1900-2300 |
| (White color) DIM 2-CCT Luminous Flux (lm) ±5% | 650-950 | 850-1150 | 1400-1800 | 1800-2200 |
| Remark: If with black color, the lumen will decrease around 10% | ||||
| CRI | CRI80 | |||
| Beam Angle (°) | 40° | |||
| LED Driver | Built-in | |||
| Dimming Option | Triac | |||
| Emergency Kits | NO | |||
| Electrical Class | Class I | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Product Finishing(Base) | Black RAL9005,White RAL9016 | |||
| Optics Material | PMMA | |||
| Housing Material | Aluminium | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 650℃ | |||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||
| Installation | wall mount | |||
