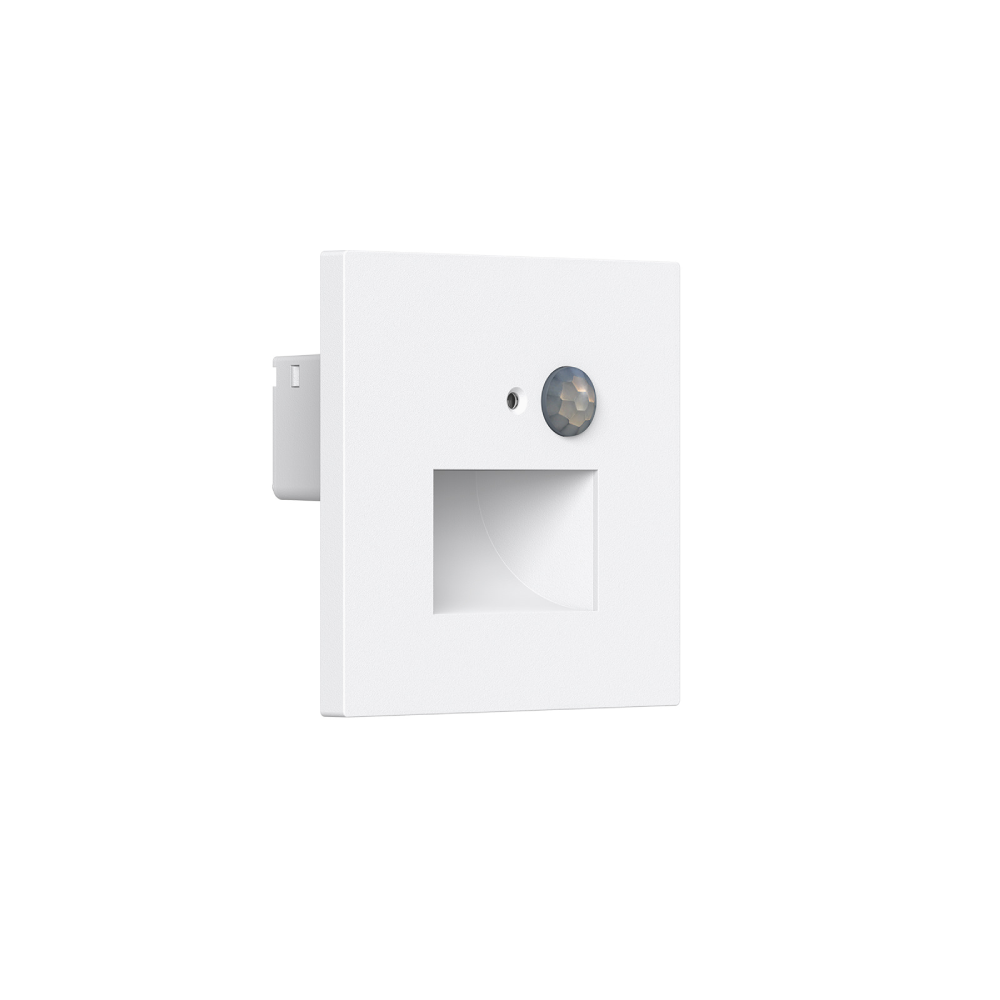

This is a compact design LED step light for particularly use with cavity wall wiring boxes. Supplied with built-in driver and quick push terminal for easy and quick installation, it can also be loop in and loop out. One light body with 4 different clip on trim options and two light shapes to meet various requirements. It has daylight & PIR sensor function for energy saving and smarter lighting experiences. 3CCT adjustable via an integrated dip switch to save your stock SKU.
Compact design, super slim with 41mm height.
Interchangeable CCT(3000K+4000K+5700K)with slide switch.
Four types frames interchangeable, convenient for maintenance.
IP44 in front part.
Functions: Daylight sensor, PIR sensor.
Internal flicker free driver.
Application Areas: It is widely used in corridor, hotel, bar, stairway, bathroom, bedroom etc.
| Code No. | WL124A-1W | WL124A-2W | WL124B-1W | WL124B-2W |
|---|---|---|---|---|
| Dimension(mm) | 80*80*41mm | 80*80*41mm | Ø80*41mm | Ø80*41mm |
| Watt(W) | 1W | 2W | 1W | 2W |
| Rated Input Voltage(V) | AC200-240V | |||
| Input Voltage(V) | AC230V | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||
| CCT Selection DIP Switch | yes | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% (the square-hole) | 35-40 | 60-80 | 35-40 | 60-80 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% (the square-hole) | 35-40 | 60-80 | 35-40 | 60-80 |
| The strip-hole light version lumen is only 10% of the square-hole light version | ||||
| CRI | 80 | |||
| Beam Angle (°) | 90°(the square-hole) & 80°(the strip-hole) | |||
| LED Driver | Built-in | |||
| Sensor | PIR sensor & Daylight sensor | |||
| Electrical Class | Class II | |||
| Ingress Protection (IP Rating) | IP44 (Below Ceiling) | |||
| Product Finishing(Base) | White RAL9016 | |||
| Materials of Optics | PC | |||
| Materials of Housing | PC | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (C ) | 650°C | |||
| Operating Temp. (C ) | -20-30°C | |||
| Storage Temp. (C ) | -20-60°C | |||
| Installation | Recessed | |||
