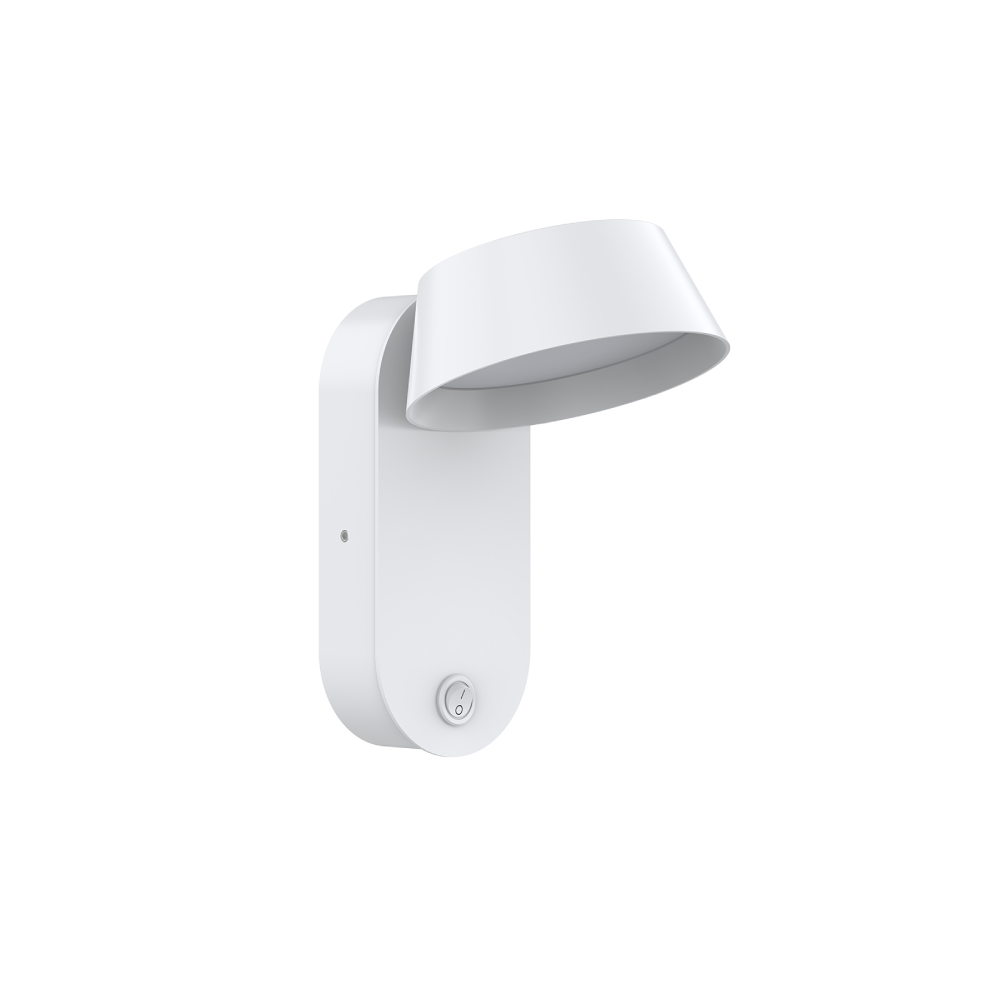

WL109 is an indoor wall lamp which has 180degrees rotation for a flexible adjustment. It is a compact design with milky PC shade, so that it can has a soft and uniform light output. Besides, it adopt high lumen efficiency SMD light source, can offer enough lighting for users. ADC12 aluminum housing provides a great thermal management, ensures a longer lifespan.
Application Areas：It’s widely used in indoor corridor, study room, bedroom, lobby etc.
| Code No. | WL109-4W |
|---|---|
| Dimension(mm) | 132*69*152 |
| Watt(W) | 4W |
| Rated Input Voltage(V) | AC230V |
| Input Voltage(V) | AC200-240V |
| Light Source | SMD |
| SDCM | ≤6 |
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K |
| CCT Selection DIP Switch | YES |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 500-550 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 470-520 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 470-520 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 450-500 |
| CRI | 80 |
| Beam Angle (°) | 100° |
| LED Driver | Built-in |
| Dimming Option | Triac |
| Electrical Class | Class I |
| Ingress Protection (IP Rating) | IP20 |
| Impact Resistance (IK Rating) | IK06 |
| Product Finishing(Base) | White |
| Materials of Optics | PC |
| Materials of Housing | Aluminium+PC |
| Lifetime (hr) | 5,0000h |
| Glow wire test (C ) | 850C |
| Operating Temp. (C ) | -20C ~40C |
| Storage Temp. (C ) | -20C ~65C |
| Inst allation | wall mount |
