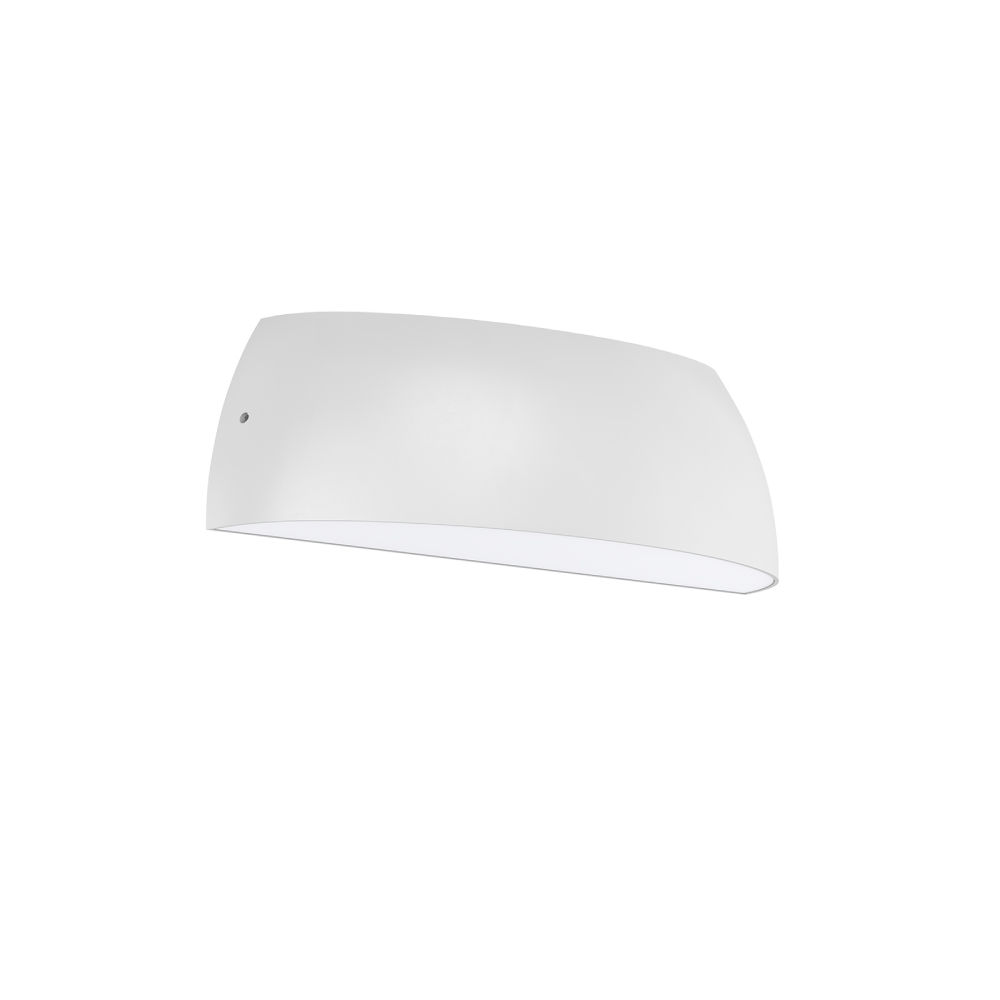

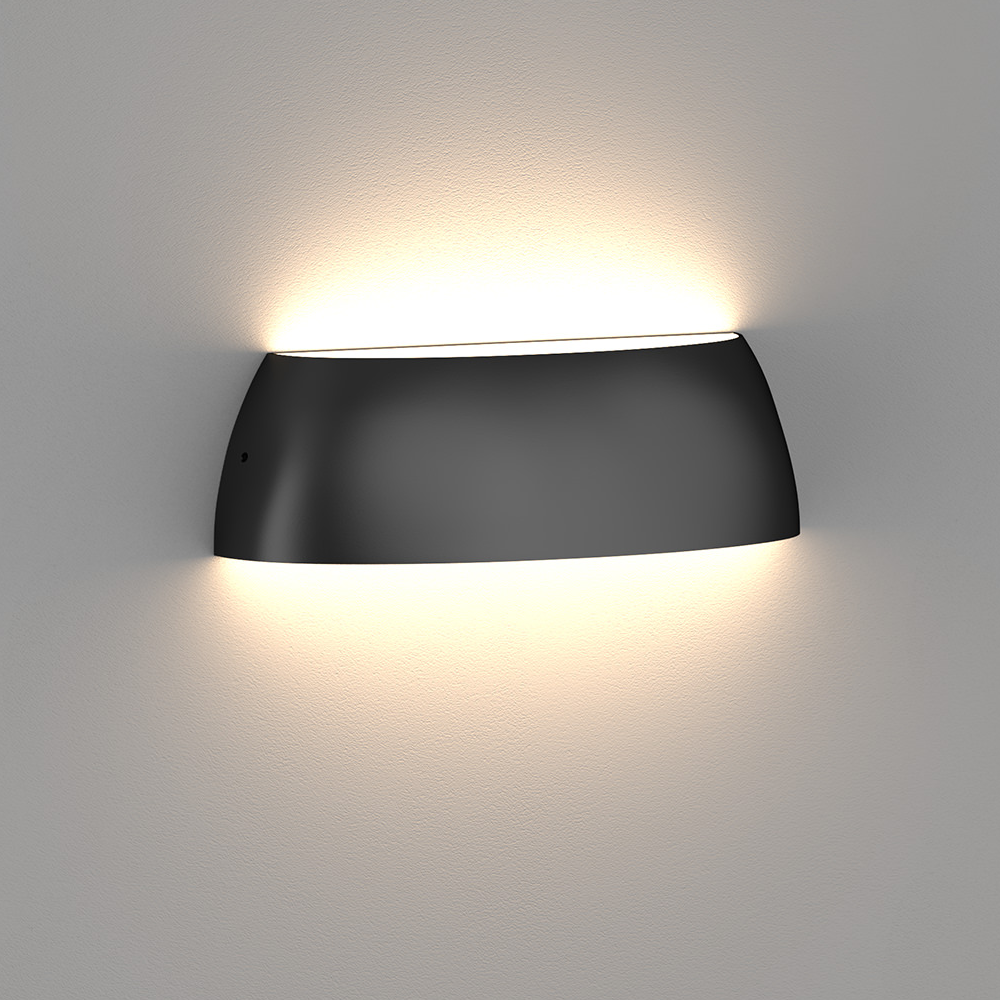

WL102 is an up&down lighting design indoor wall lamp. It has a flowerpot shape and looks smooth and compact, suitable for lighting decoration. ADC12 aluminum housing offers great thermal management. Up&down lighting has 120degree wide beam angle, which is greatly increased decorative effect.
Application Areas: It’s widely used in indoor corridor, study room, bedroom,lobby etc.
| Code No. | WL102-8W |
|---|---|
| Dimension(mm) | 242*67*77 |
| Watt(W) | 8W |
| Rated Input Voltage(V) | AC230V |
| Input Voltage(V) | AC200-240V |
| LED Module Input | - |
| Light Source | SMD |
| SDCM | <6 |
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K |
| CCT Selection DIP Switch | Yes |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 700-750 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 680-720 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 720-770 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 700-750 |
| CRI | 80 |
| Beam Angle (°) | Up&Down120° |
| LED Driver | Built-in |
| Dimming Option | Triac |
| Electrical Class | Class I |
| Ingress Protection (IP Rating) | IP20 |
| Impact Resistance (IK Rating) | IK06 |
| Product Finishing(Base) | White |
| Optics Material | PC |
| Housing Material | Aluminium+PC |
| Lifetime (hr) | 50,000h |
| Glow wire test (℃ ) | 850℃ |
| Operating Temp. (℃ ) | -20℃ ~45℃ |
| Storage Temp. (℃ ) | -20℃ ~65℃ |
| Installation | wall mount |
