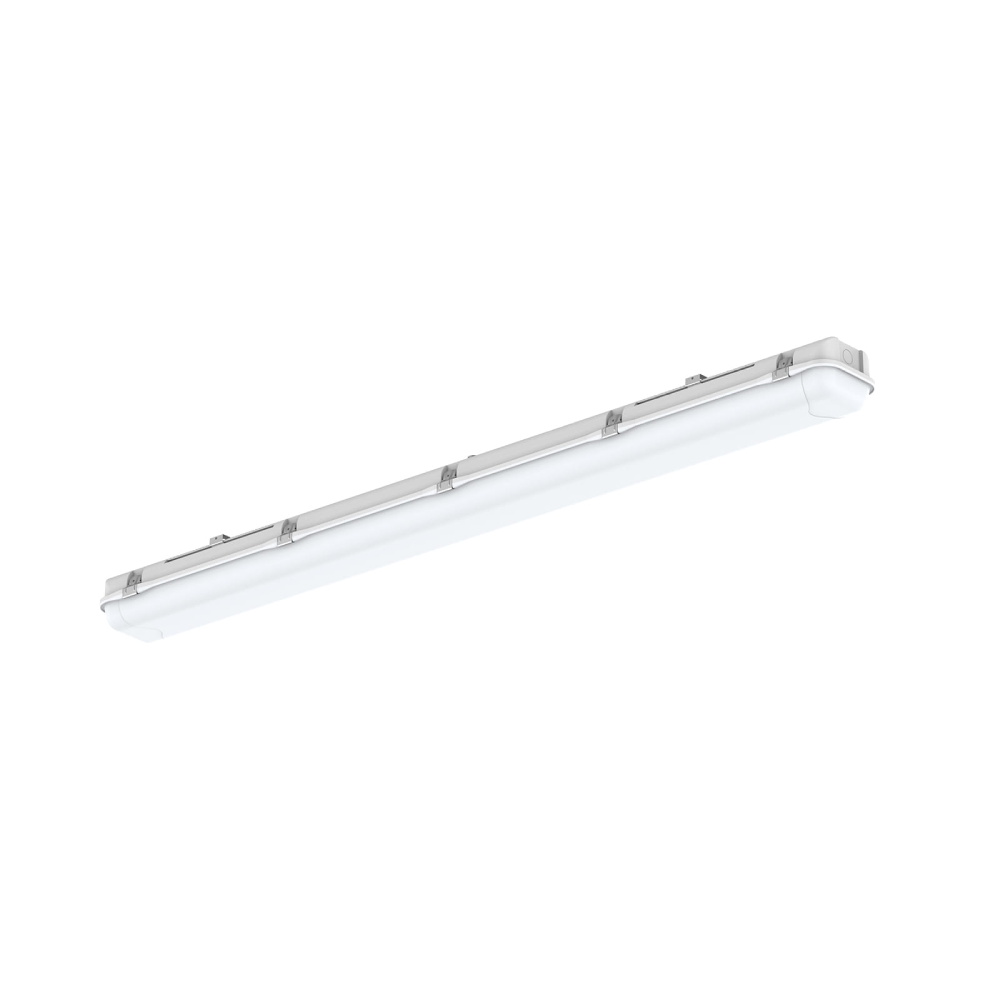

This tri-proof light is an ideal alternative to fluorescent lamps and has a sustainable design with multiple plug-in modules. It adopts a high-lumen SMD LED chip, a high transmittance lampshade, and a 120-degree wide beam angle to provide a uniform light output. It is a splicing design with a waterproof connector. Three sizes option: 600mm/1200mm/1500mm. Surface mount and pendant installation available. For modular design, the LED part, and driver can be easily replaced, installer can also install a microwave sensor module and emergency pack easily based on the plug-in design.
Application Areas: It's widely used in factories, warehouses, workshops, ships, parking lots, and other lighting areas with high humidity and dusty places.
| Code No. | TRP13-600-20W-A4 | TRP13-1200-50W-A4 | TRP13-1500-60W-A4 |
|---|---|---|---|
| Dimension(mm) | 680*124*86 | 1280*124*86 | 1580*124*86 |
| Watt(W) | 20W@max | 50W@max | 60W@max |
| (optional:18W / 15W / 12W) | (optional:40W / 35W / 30W) | (optional:55W / 45W / 35W) | |
| Rated Input Voltage(V) | AC220-240V | ||
| Input Voltage(V) | AC198-264V | ||
| Light Source | SMD2835 | ||
| SDCM | ＜6 | ||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||
| CCT Selection DIP Switch | Yes | ||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 20W@2600-2700 18W@2300-2400 15W@1900-2000 12W@1480-1530 | 50W@6160-6300 40W@5100-5500 35W@4480-4790 30W@3860-4050 | 60W@7800-8200 55W@6950-7500 45W@5690-6150 35W@4500-5000 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 20W@2500-2700 18W@2200-2480 15W@1880-2070 12W@1500-1570 | 50W@6040-6700 40W@4970-5700 35W@4450-5070 30W@3900-4380 | 60W@7800-8300 55W@6900-7750 45W@5760-6480 35W@4580-4900 |
| CRI | ≥80 | ||
| Beam Angle (°) | 120° | ||
| LED Driver | Driver built-in | ||
| Dimming Option | DALI/0-10V | ||
| Sensor | Microwave sensor | ||
| Emergency Kits | NO | YES | |
| Electrical Class | Class Ⅰ | ||
| Ingress Protection (IP Rating) | IP65 | ||
| Impact Resistance (IK Rating) | IK08 | ||
| Product Finishing(Base) | Grey | ||
| Materials of Optics | PC | ||
| Materials of Housing | PC | ||
| Lifetime (hr) | 50,000h | ||
| Glow wire test (℃ ) | 750 ℃ | ||
| Operating Temp. (℃ ) | -20 ℃~45 ℃ | ||
| Storage Temp. (℃ ) | -20 ℃~ 65 ℃ | ||
| Installation | Surface mount / Pendant | ||
