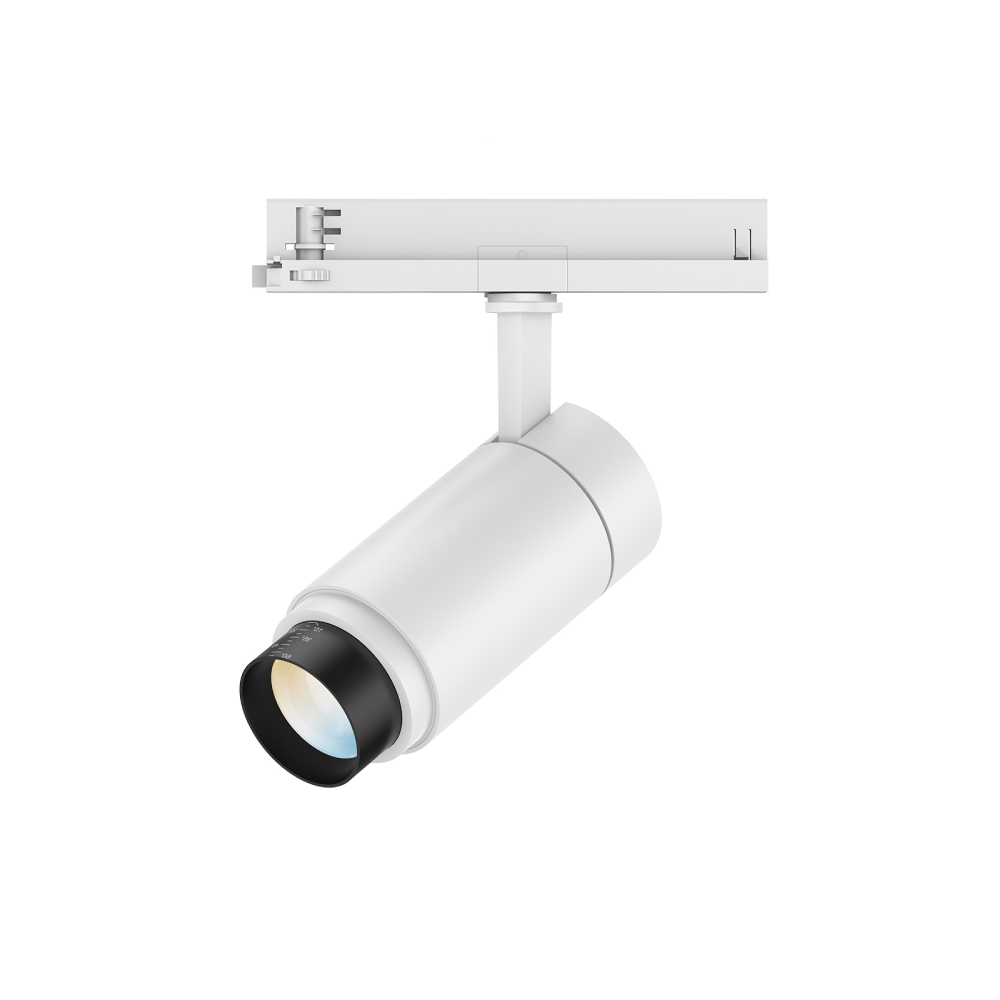

The LED track light with simple and elegant design, One track light with an adjustable beam angle varies from 15°to 60°, creating a diversified and dramatic atmosphere. Lens optical design with even light output. Changeable lighting orientation with 350° in the horizontal direction and 90° in the vertical direction. Aluminum heat sink provides excellent heat dissipation.
Application Areas: It is suitable for supermarkets, specialty stores, show windows, and exhibition halls; focus lighting, decorative and background lighting, where attention is focused on subjects to emphasize special visual points.
| Model No. | TL56-10W-D | TL56-25W-D | TL56- 30W-D | TL56-15W | TL56-25W | TL56-30W |
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø65*234 | Ø80*260 | Ø100*265 | Ø65*234 | Ø80*260 | Ø100*265 |
| Watt(W) | 10W | 25W | 30W | 15W | 25W | 30W |
| Rated Input Voltage(V) | AC230V | |||||
| Input Voltage(V) | AC220-240V | |||||
| Light Source | COB | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K | |||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | - | 500~1500 | 750~2500 | 1000~3000 | ||
| DIM 1-CCT Luminous Flux (lm) ±5% | 330-960 | 700-2500 | 950-2800 | - | ||
| CRI | Ra>80 (Ra>90 Ra>97optional ) | |||||
| Beam Angle (°) | 15° ~ 60° | |||||
| UGR | - | |||||
| LED Driver | Built-in | |||||
| Dimming Option | Triac | |||||
| Electrical Class | Class Ⅰ | |||||
| Ingress Protection (IP Rating) | IP20 | |||||
| Product Finishing(Base) | White RAL 9016 / Black RAL9005 | |||||
| Materials of Optics | PC | |||||
| Materials of Housing | Aluminum | |||||
| Lifetime (hr) | 50,000h | |||||
| Glow wire test (℃ ) | 850℃ | |||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||||
| Installation | Track | |||||
