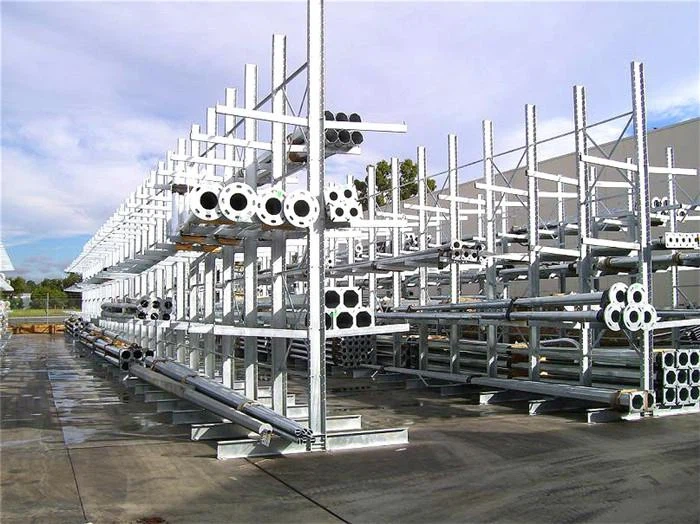

1.Introduction: Cantilever rack is a very important warehouse storage rack, Cantilevered racks are suitable for storing long material, ring material, sheet, pipe and irregular goods. Cantilever racks can be single or double, cantilever racks with structural stability, good load capacity, higher space utilization characteristics. cantilever rack column use more H-beam or cold-rolled steel, the use of square tube cantilever, cold-rolled steel or H-beam. Between arm and column use plug-in or bolt-type connection. Between the base and column use bolted type, base use cold Rolled or H-section steel.
2.Classification:
1).According to the load capacity, cantilever rack can be divided into light duty cantilever rack, medium duty cantilever rack and heavy duty cantilever rack.
2).According to structure specification, cantilever rack can be classified into single side and double side.
3.Features:
1).Suitable for storing long material, ring material, sheet, pipe and irregular goods.
2).Cantilever rack column specification has three options and can be up to 6000mm, 200*100 H steel, 250*125 H steel, 300*150 H steel.
3).Cantilever rack arm can be made as long as 1800mm and adjusted by a pitch of 101.6mm.
4).Cantilever rack mainly consists of column, base, arm, bracing.
4.Packing and shipping:
1).Packaging details: Standard export package. All parts packed by steel belt and covered by plastic film.
2).shipping time: 3 weeks after receipt of the 30% deposit.
