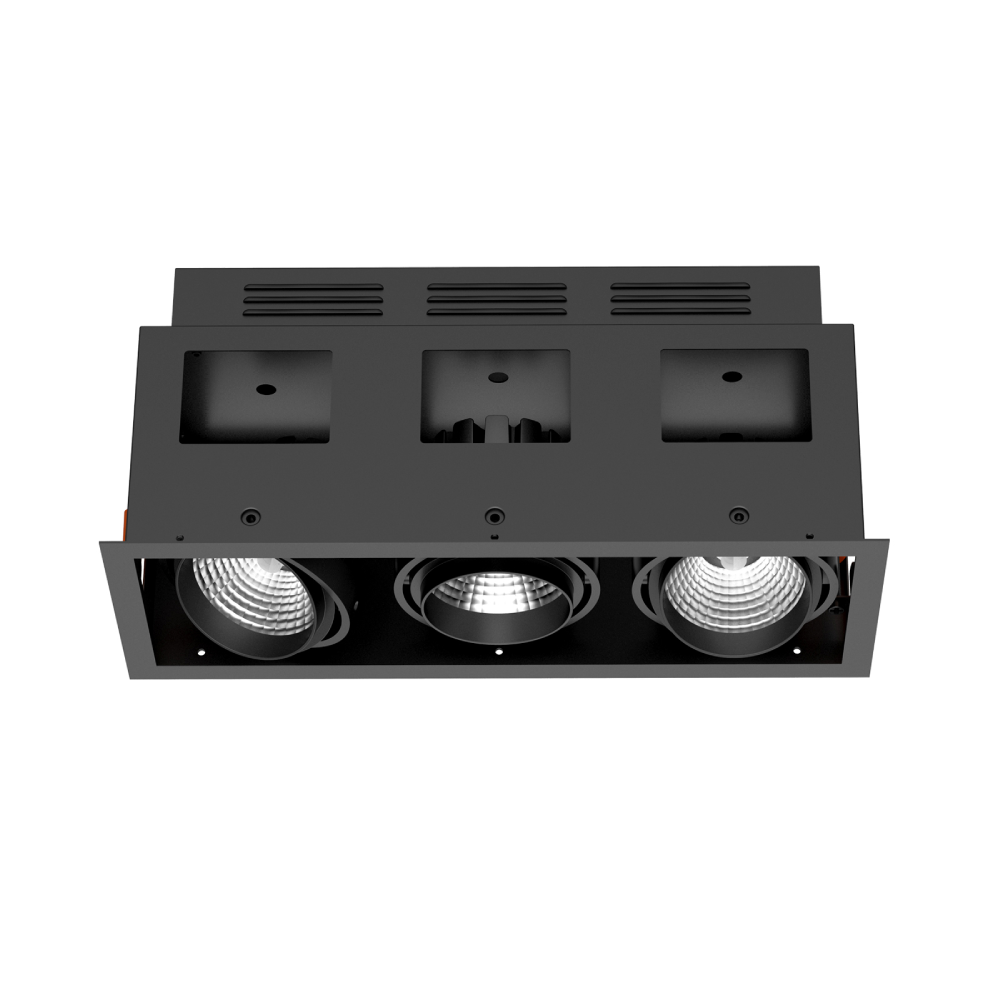

Rectangular LED grille downlight is unique designed with COB high power LED chip. High efficient reflector with COB LED provides high lumen output and wide beam angle.
Single head, double head and triple head provided for wide choice. Adjustable lighting direction offers various lighting orientation.
| Code | LEDChip | Wattage | BeamAngle | CCT | Lumens(±5%) | Dimension | Download |
| UP-RD05-12W | COB | 12W | 24° | 2700K,3000K,4000K,5000K | 820-980lm | L130*W130*H155mm cutout L115*W115mm | Specification |
| UP-RD05-24W | COB | 24W | 24° | 2700K,3000K,4000K,5000K | 1600-2040lm | L239*W130*H155mm cutout L224*W115mm | Specification |
| UP-RD05-36W | COB | 36W | 24° | 2700K,3000K,4000K,5000K | 2200-2700lm | L349*W130*H155mm cutout L334*W115mm | Specification |
