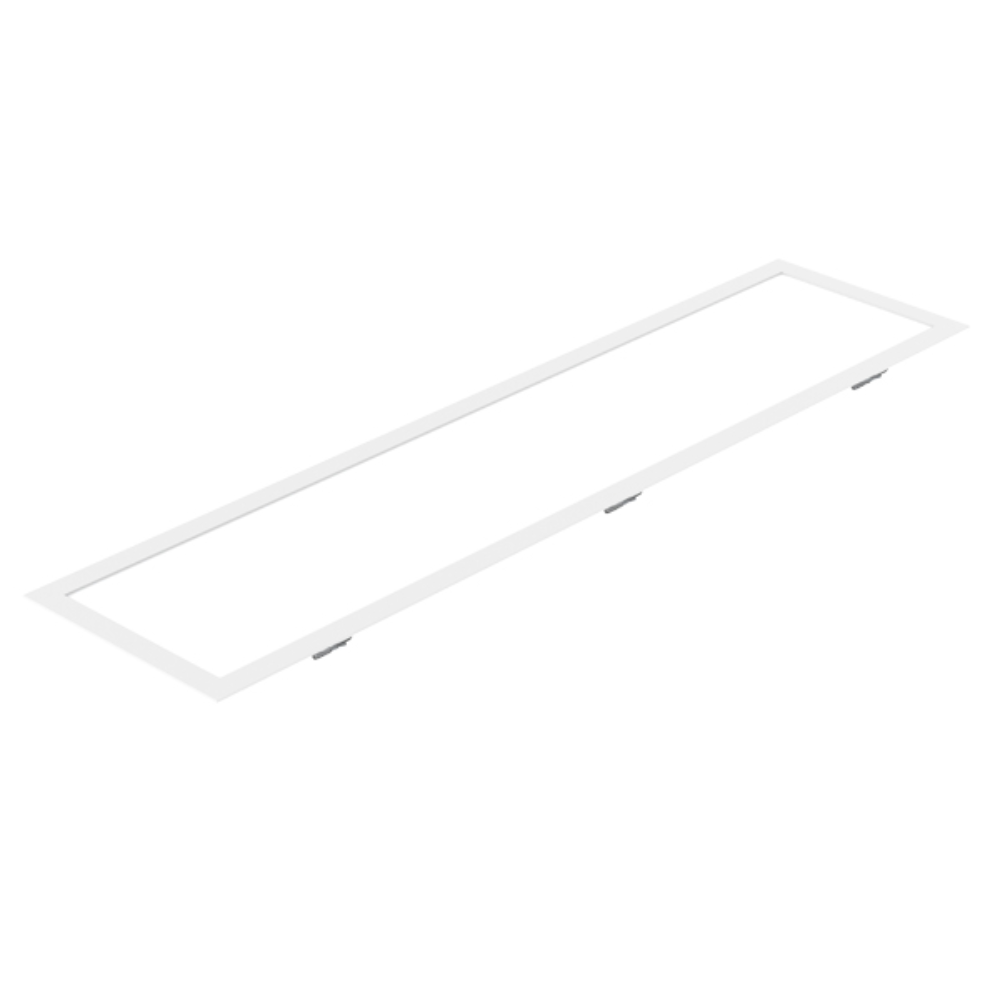

This panel light is an Up & down lighting design, a novel design without any screws making it a special and good-looking panel. Besides, it is an anti-glare UGR<19 design without a Prism plate, which is a new tendency for the high-end market. Magnetic mounting box can also
save much time for installation.
Application Areas: It is widely used in house lighting, office rooms, meeting rooms, restaurants, etc.
| Code No. | PL30120-30W-DB | PL30120-40W-DB | PL30120-50W-DB | ||||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | 1200*300*16.5 | ||||||
| Watt(W) | 30W | 40W | 50W | ||||
| Rated Input Voltage(V) | AC230V | ||||||
| Input Voltage(V) | AC220-240V | ||||||
| Light Source | SMD2835 | ||||||
| SDCM | ＜6 | ||||||
| CCT(K) | 1-CCT: 3000K /4000K/5000K/5700K | ||||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 2640-3060lm | 3400-4000lm | 4200-4950lm | ||||
| CRI | CRI80 | ||||||
| Beam Angle (°) | 110° | ||||||
| UGR | <19 | <21 | |||||
| LED Driver | Built-OUT | ||||||
| Dimming Option | Triac/Dali | ||||||
| Electrical Class | Class I | ||||||
| Ingress Protection (IP Rating) | IP20 | ||||||
| Product Finishing(Base) | White RAL 9003 | ||||||
| Materials of Optics | PS (Diffuser) /PMMA (LGP) | ||||||
| Materials of Housing | Aluminium(frame) | ||||||
| Lifetime (hr) | 50,000h | ||||||
| Glow wire test (℃ ) | 650℃ | ||||||
| Operating Temp. (℃ ) | -10~40℃ | ||||||
| Storage Temp. (℃ ) | -20~50℃ | ||||||
| Installation | Pendant | ||||||
