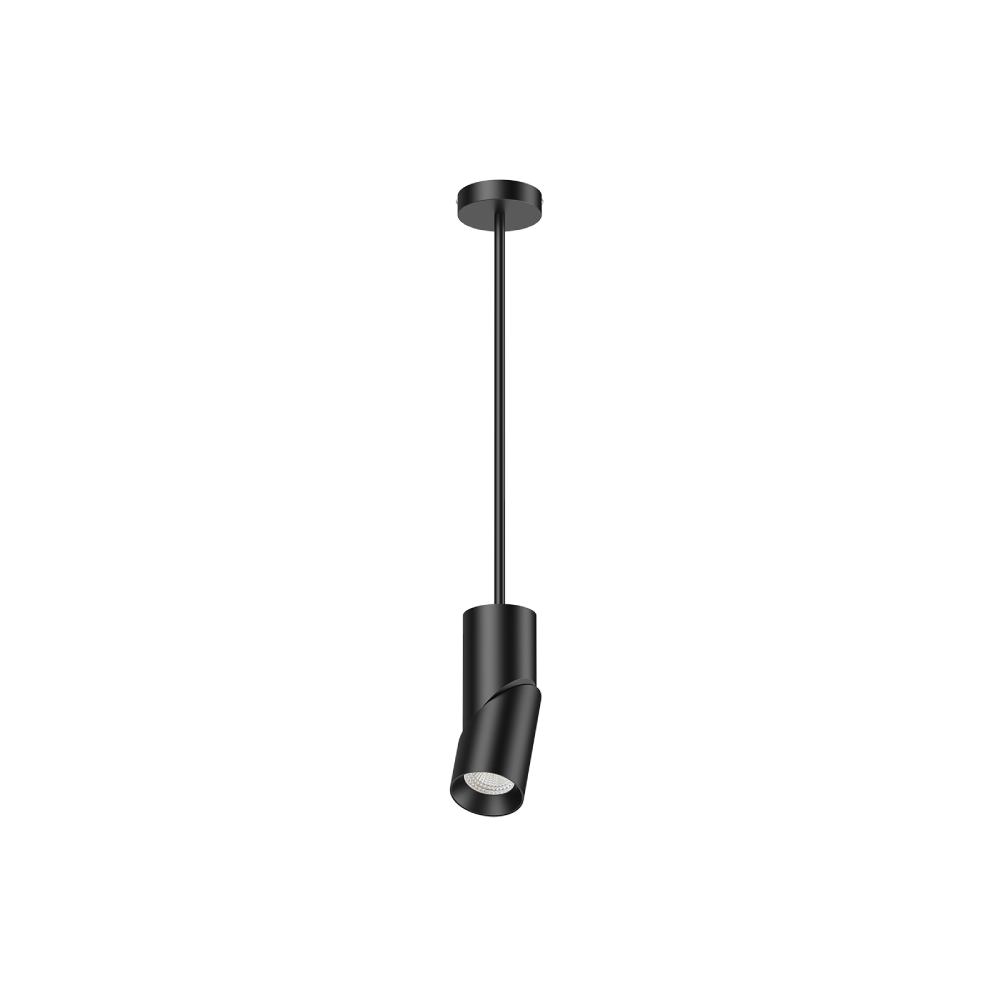

This series is a simple appearance, exquisite, professional luminous design. Lighting components and power components are designed separately to better heat dissipation of lamps. It shares one module lamp body but compatible with 3 kinds of installation accessories (track/ surface pendant/ surface mounted). The lamp body can be rotated vertically 90degree and horizontally more than 315degree to achieve different directions focus lighting.
Application: Applicable for commercial lighting in office, hotel, restaurant, shops, supermarket, art-gallery, museum, etc; Also suitable for residential lighting for bedroom, living room, corridor, etc.
| Code | PD126-65-10W | PD126-65-15W | PD126-85-20W | PD126-85-25W | PD126-85-28W | PD126-85-30W | ||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 065 | 085 | ||||||
| Watt(W) | 10W | 15W | 20W | 25W | 28W | 30W | ||
| Rated Input Voltage(V) | AC220-240V | |||||||
| Input Voltage(V) | AC198-264V | |||||||
| LEDModule Input | ||||||||
| Light Source | COB | |||||||
| SDCM | <5 | |||||||
| CCT(K) | 1-CCT:3000K/4000K||3-CCT:3000K+4000K+5000K | |||||||
| CCT Selection DIP Switch | YES | |||||||
| Luminous Flux (Im)±5% |
1-CCT | Non-DIM | 880-980 | 1250-1400 | 1900-2100 | 2300-2500 | 2780-2900 | |
| DIM | 840-930 | 1290-1400 | 1800-2000 | 2180-2370 | 2500-2850 | |||
| 3-CCT | Non-DIM | 850-900 | 1200-1250 | 1850-2000 | 2300-2500 | 2650-2800 | ||
| DIM | 810-850 | 1150-1200 | 1800-1900 | 1900-2300 | 2500-2650 | |||
| Decrease 50%lumen with honeycomb cover | ||||||||
| CRI | 90 | |||||||
| Beam Angle () | 30%36/60 | 24/36%60 | ||||||
| UGR | ||||||||
| LED Driver | Driver built-in | |||||||
| Dimming Option | Triac/DAL | Triac | Triac/DALI | |||||
| Sensor | NO | |||||||
| EmergencyKits | NO | |||||||
| Electrical Class | Class I | |||||||
| Ingress Protection(IP Rating) | IP20 | |||||||
| Impact Resistance(IK Rating) | IK03 | |||||||
| Product Finishing | White RAL 9016/Black RAL9005 | |||||||
| Optics Material | PC | |||||||
| Housing Material | Aluminium | |||||||
| Lifetime (hr) | 50,000h | |||||||
| Glow wire test (℃) | 750℃ | |||||||
| Operating Temp. (℃) | -20℃~40℃ | |||||||
| Storage Temp. (℃ | -20℃~65℃ | |||||||
| Installation | Pendant | |||||||
