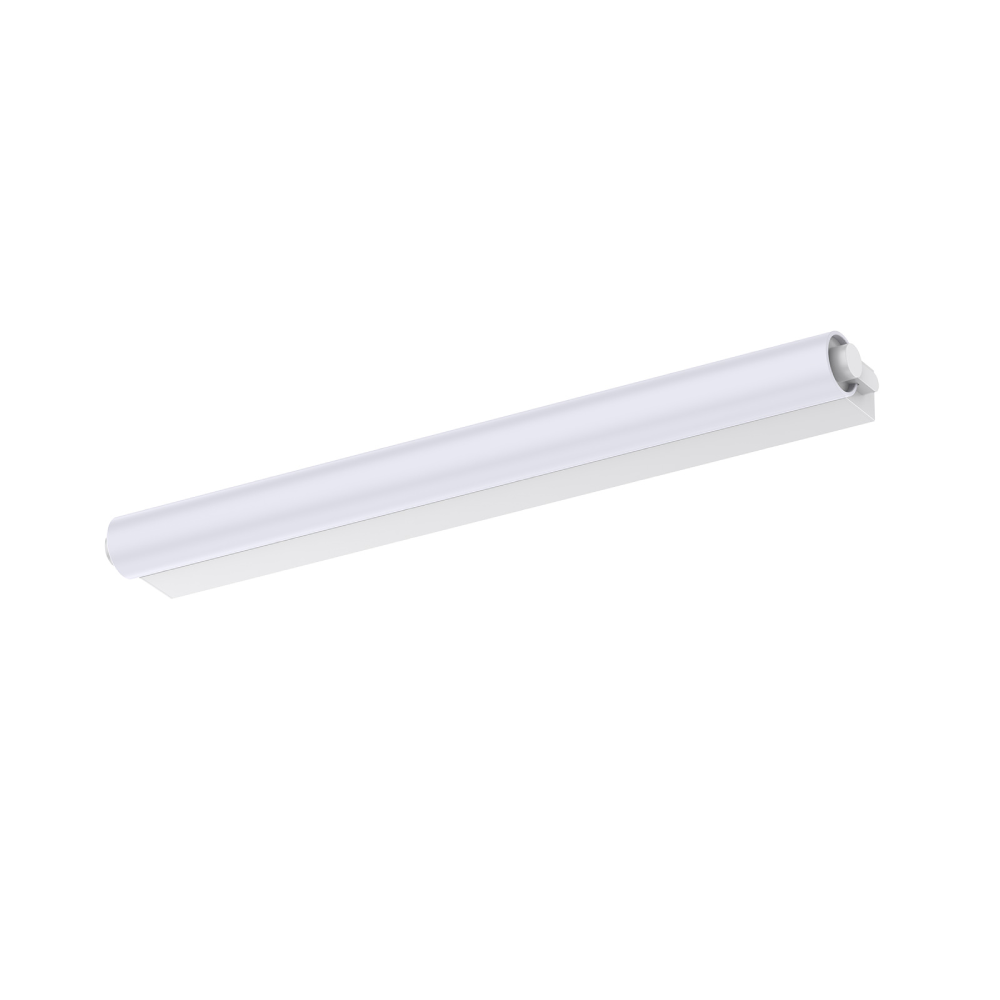

This mirror light composed of high light transmittance frosted PC lampshade and whole aluminum lamp body to create a soft light and improve heat dissipation efficiency. IP44 waterproof and wall mounted installation way makes it able to be installed in front of the bathroom mirrow to provide a better lighting condition. Internal slide switch for CCT
adjustable, so it can meet more application demands.
Application Areas：It’s widely used in hotel, restaurant, home bathroom, office and so on.
| Code | ML35-600-8W | ML35-600-12W | ML35-900-12W | ML35-900-15W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | 600*79*46 | 900*79*46 | ||||
| Watt(W) | 8W | 12W | 12W | 15W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198V-264V | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 2-CCT:2700K+3000K/3000K+4000K| | 3-CCT: 3000K + 4000K + 5700K | |||||
| CCT Selection DIP Switch | YES | |||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 850- 1050 | 1250- 1550 | 1250- 1550 | 1600- 1900 |
| Non-DIM 2-CCT Luminous Flux (lm) ±5% CRI80 | 2-CCT | Non-DIM | 850- 1050 | 1250- 1550 | 1250- 1550 | 1600- 1900 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% CRI80 | 3-CCT | Non-DIM | 850- 1050 | 1250- 1550 | 1250- 1550 | 1600- 1900 |
| CRI | 80 | |||||
| Beam Angle (°) | 160° | |||||
| LED Driver | Driver built-in | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP44 | |||||
| Impact Resistance(IK Rating) | IK06 | |||||
| Product Finishing | White RAL9016/Chromed | |||||
| Optics Material | PC | |||||
| Housing Material | Aluminium | |||||
| Lifetime (hr) | 50,000h | |||||
| Glow wire test (°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Wall mount | |||||
