it is a storage solution for the box stacker to automatically access the box unit (plastic box or carton). The load of the stacker is generally 25-100kg or designed according to requirements, and the material box can be stored in a single box or stacked.

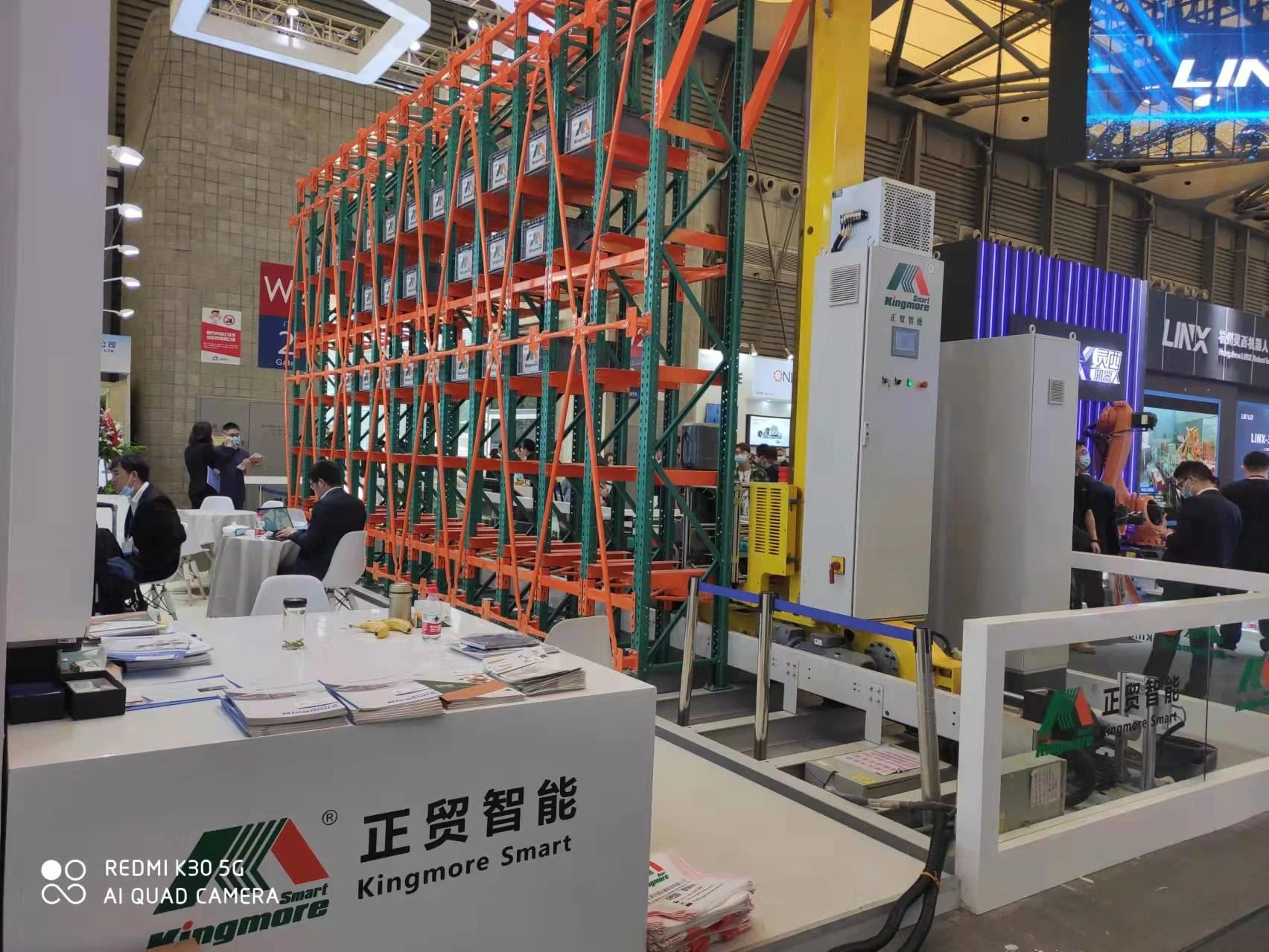

The miniload system is another style of Automated Storage Retrieval System. It is mainly composed of upper beam, column, lower beam, loading platform, fork, control system, communication system and other parts. It is the core equipment of automated warehouse, through manual, semi-automatic, fully automatic and online operation modes Realize automatic storage and transportation, and the material storage unit is based on the material box. It is widely used in FCL storage and unpacking operations in high-speed production and distribution links in e-commerce, electronics, medicine, chemical, new energy and other industries.
Fast running
High positioning accuracy
Running smoothly
Low noise
efficient
small volume
(More loading details? welcome to connect for asking)
| post |
single post | double post |
| Rated load | 0-100kg | 0-300kg |
| Overall height | ≤14m | ≤14m |
| Walking speed | 240m/min | 240m/min |
| lift speed | 120m/min | 120m/min |
| way to get goods |
forklift/clip | forklift/clip |
| control way | Servo | Servo |
