Product details:

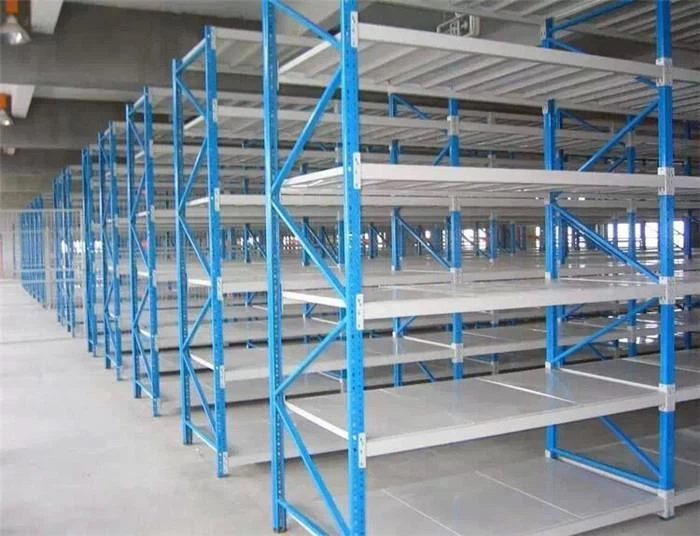

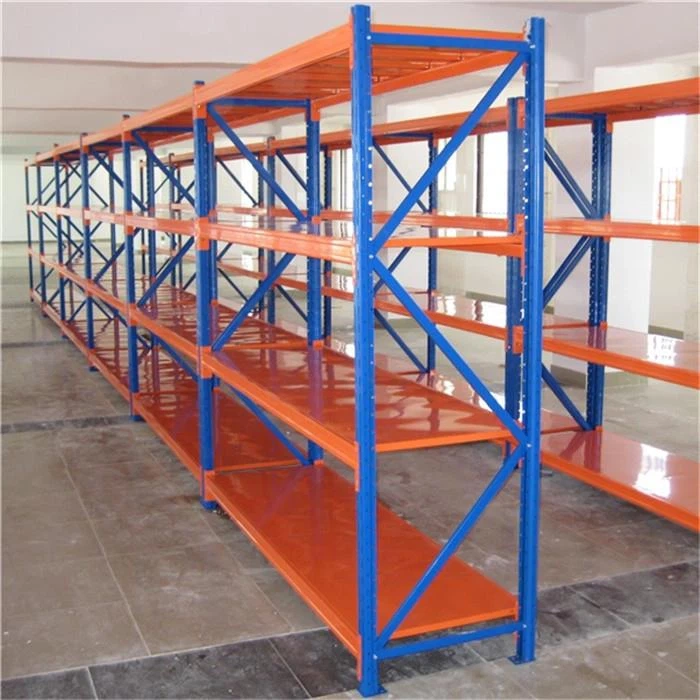

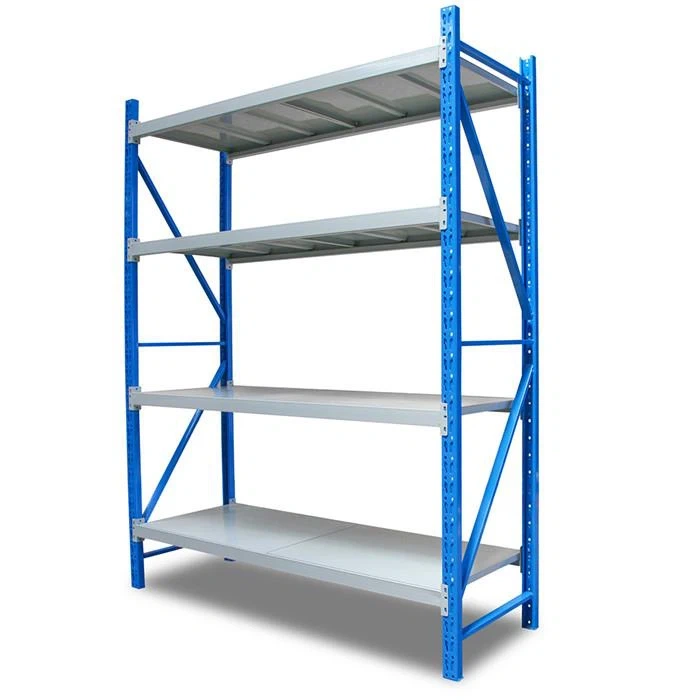

Medium-length shelves with 50mm pitch are composed of frames, beams and panels. The medium-sized long-span shelves can be made of particleboard, steel wire mesh decking, zinc steel decking and rolled metal decorative panels, making them ideal for many different environments. Large-span shelves are especially suitable for manual storage of large items. Compared to the Type 55mm pitch long-span shelf, the load carrying capacity will be greater when the panels are placed on the beam and have the same length and width. The load capacity is about 300 kg to 800 kg per floor.

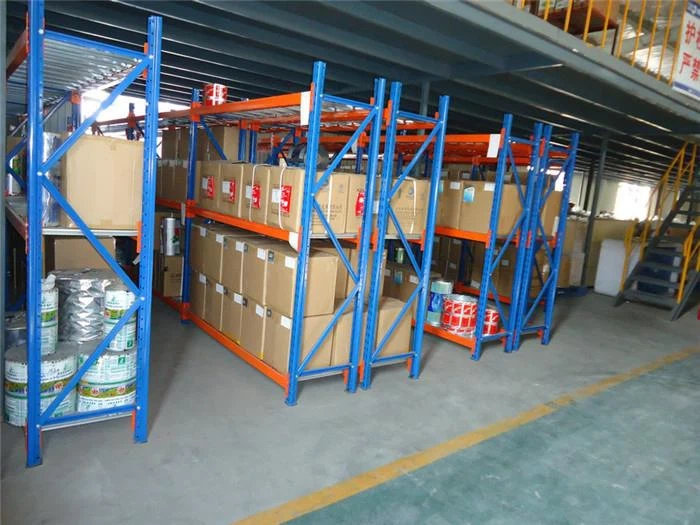

Our Medium Duty Racking is designed for small to medium sized goods in commercial and industrial warehouse storage environments - where goods are fast-moving and require easy access. To accommodate goods of varying weight and sizes while maintaining cost-effectiveness, we offer two storage solution ranges:
Light duty rivet shelving rack: The load capacity is no more than 200kg.
Medium duty shelving rack: The load capacity is about 300-800kg.
Specification:
Height(mm) 1200-3000
Depth(mm) 400/500/600/700/800
Length(mm) 1200/1500/1800/2100/2400
Shelf levels 2 to 6 levels
Shelf load capacity(UDL) 300-700kg
Frame load capacity(UDL) Up to 4500kg
Base Material High Tensile Steel
Color Blue frame, Orange beam
@Post/Upright: 55*47*1.5 or 60*50*1.5
@Beam:
A. Step beam:
50*30*25*1.5, 60*40*28*1.5, 80*50*28*1.5, 110*50*32*1.5mm
B. Tube beam:
50*30*1.5, 60*40*1.5, 80*40*1.5, 100*50*1.5 and so on
@Steel decking:
Step height 25mm steel decking, 28mm steel decking, 32mm steel decking, 40mm steel decking
Galvanized steel decking: Normally the width 200-300mm.
Wire mesh decking: Normally the wire: 4.0/4.5/5.0/5.5mm. Mesh: 100*50mm, 50*50mm and so on.
