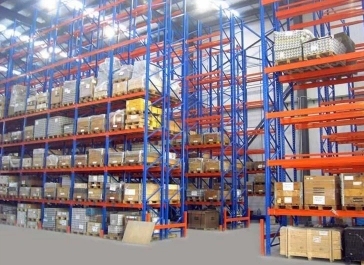

Selective Pallet Racking is the simplest, most commonly used and most economical option industrial racking systems. It offers the best solutions for warehouses with palletized products and a wide variety of goods.
The mainly parts of pallet racking are upright frame, beam and related accessories, like upright protector, frame barrier, pallet support bar, pallet stop beam, loading panel etc. The structure of pallet rack is very simple, easy installation & disassembly, can realize full free goods access mode.
| Application | heavy duty industrial racking systems |
| Surface | Corrosion Protection (color powder coated) |
| Height | 1500mm - 21000mm |
| Depth | 300mm - 1500mm |
| Length | 1200mm - 3900mm |
| Thickness | 1.5mm - 3.0mm |
| Loading capacity | 500kg-4000kg/level, Max. 21000kg/bay |
| Material | Q235B steel in normal temperature Q345B steel in low-temperature customized |
|
|
|
| Color | standard RAL5005(blue) / RAL2004(orange) / RAL7035(light grey) |
| Material | Q235B / Q345B |
| Pitch | 50mm / 50.8mm / 75mm / 76.2mm |
| Hole type | hexagon, hexagon+round, bullet, teardrop, waterdrop, square |
| Section for upright | 3"*3", 80*60mm, 85*67mm, 90*70mm 100*67mm, 100*95, 120*75mm, 120*95mm |
| Section for beam | 3"/3.5"/4"/4.5"/5"/5.5"/6"/6.25"*H2.5"*T16Ga/15Ga step beam 80/90/100/110/120/130/140/160/180*50 box beam |
| Delivery time | 3-4 weeks after receiving the deposit |
| Sample | provide free hand samples (300mm upright and 150mm beam) |
| Certification | RMI / CE / ISO / TUV / AS4084-2012 |
Related products
How to get a quotation? Please help us confirm below information
For end user:
1. Your pallet size in Height*Depth*Length
(for designing the racking size)
2. Your pallet max weight with loading
(for selecting the racking material specification)
3. Your warehouse size in Height (available) *Width*Length
(for designing the whole racking size)
If possible, please send us your warehouse plan drawing (in CAD or PDF)
(for making the racking layout design, to avoid your warehouse building columns)
4. Is your warehouse a cold warehouse?
(for selecting the material grade)
For project dealers:
1. The design drawing of the project
2. The pallet information of the project
3. The local material preferences
4. Other special information or demand
