The Heavy Duty Metal Racking is equipped with advanced process, thus to ensure high and reliable performance. Compared with ordinary product on the market, it is mainly composed of frames and beams, and the beam made of cold-rolled steel and is connected to the upright by hooks with safety boxes. Due to the high picking efficiency, it is really suitable for picking heavy objects through pallets.The bottom layer of the pallet can be stored on the floor, reducing the structural cost.
The strength and rigidity of our Heavy Duty Metal Racking can prevent the cargo from being damaged by compression. As a matter of fact, it is infinitely adjustable, which provides a variety of options and components to meet special needs. There are various kinds of model options, thus providing more choices to meet need.
Load Capacity & Dimension:
(2)Beam length from 1000-3300mm depends on requirement or design.
Box beams section: 80*50*1.5,90*50*1.5,100*50*1.5, 110*50*1.5, 120*50*1.5, 140*50*1.5, 160*50*1.5, 180*50*1.5mm, etc.,
DK Box beams section: 80*50*1.5,100*50*1.5, 110*50*1.5, 120*50*1.5, 140*50*1.5, 160*50*1.5.
Load Capacity & Dimension:
(3)Operation aisle is from 2200-3800mm depends on operating forklift.
Other Parts specification:
Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
4. Product display:

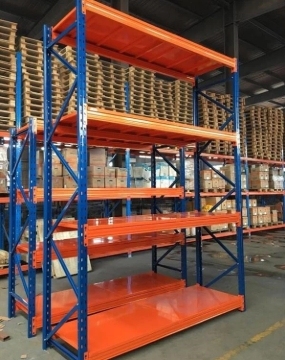

(1)Heavy duty metal rack with steel decking
(2)Heavy duty metal rack with wire mesh decking
