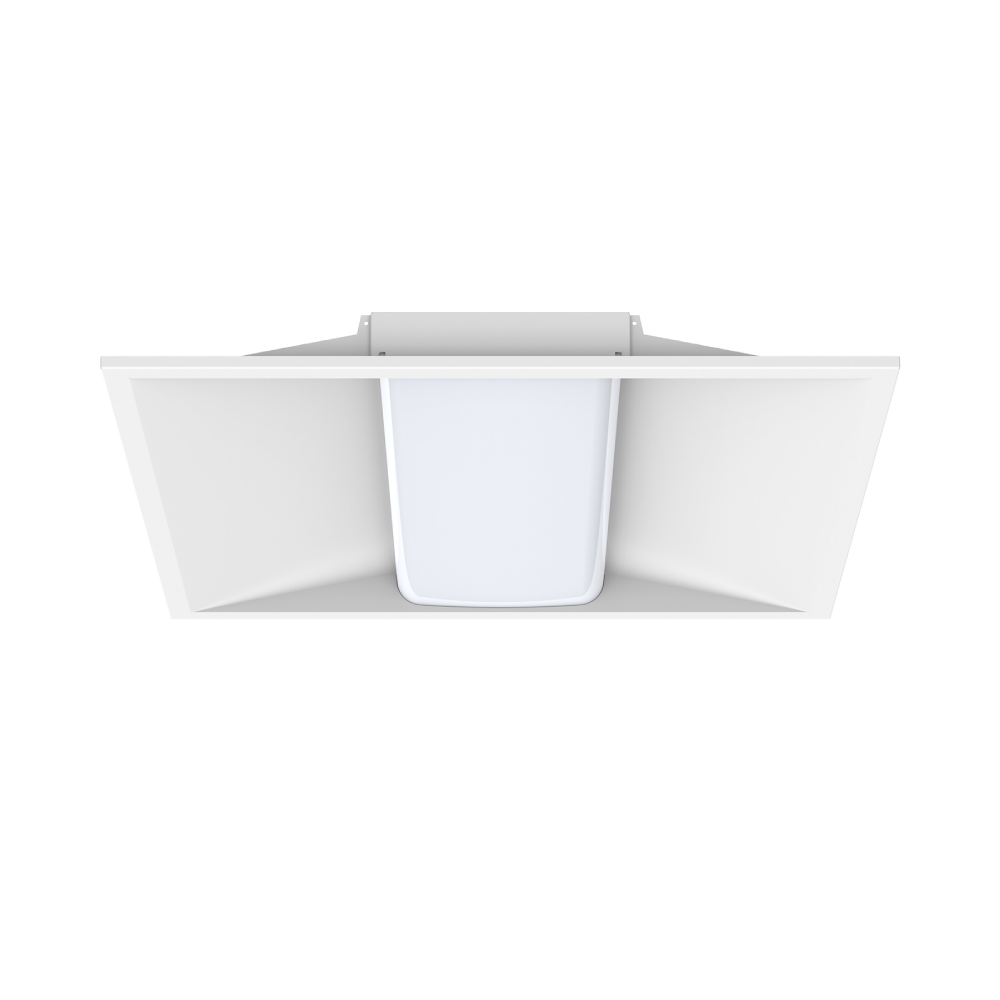

GL002 is a new LED troffer light which adopts a secondary optical design. PMMA optic lens combined with special designed PC shade can achieve a more uniform light and larger emitting area, so that users can enjoy more comfortable visual experience. Luminous efficiency 115lm/W. Powder spraying surface treatment is employed in the lamp fixture which makes the lamp corrosion resistant. Designed for grid ceiling commercial applications.
Application Areas: Office & school lighting: office room, meeting room, classroom etc. Commercial lighting: shopping malls, supermarket, retail shops etc. Other situations: hospital, laboratory, dust-free workshop etc.
| Code No. |
GL002-6060-32W
|
GL002-30120-32W |
|---|---|---|
| Dimension(mm) | 595*595*54 | 295*1195*54 |
| Watt(W) | 32W | |
| Rated Input Voltage(V) | AC230V | |
| Input Voltage(V) | AC220-240V | |
| LED Module Input | 33-38V DC 850mA CC | |
| Light Source | SMD2835 | |
| SDCM | V6 | |
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | 3-CCT: 3000K+4000K+5700K | |
| CCT Selection DIP Switch | YES | |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 3380-3680 | |
| DIM 1-CCT Luminous Flux (lm) ±5% | 3280-3580 | |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 3380-3800 | |
| DIM 3-CCT Luminous Flux (lm) ±5% | 3280-3700 | |
| CRI | >80 | |
| Beam Angle (°) | 130° | |
| LED Driver | Driver built-out | |
| Dimming Option | Triac/ DALI/ 0-10V | |
| Electrical Class | Class II | |
| Ingress Protection (IP Rating) | IP20 | |
| Impact Resistance (IK Rating) | IK06 | |
| Product Finishing(Base) | White | |
| Materials of Optics | PMMA(Lens) + PC(Diffuser) | |
| Materials of Housing | SPCC | |
| Lifetime (hr) | 50,000h | |
| Glow wire test (°C ) | 750C | |
| Operating Temp. (C ) | -10 C〜45C | |
| Storage Temp. (C ) | -20 〜65C | |
| Installation | Recessed | |
