Name: DL96 Ultra Thin Design LED Downlight
Brand: Supermarket, Retail Chain Gondola Shelves and LED Lighting Manufacture
Availability: InStock
Rating: 5 (1 reviews)

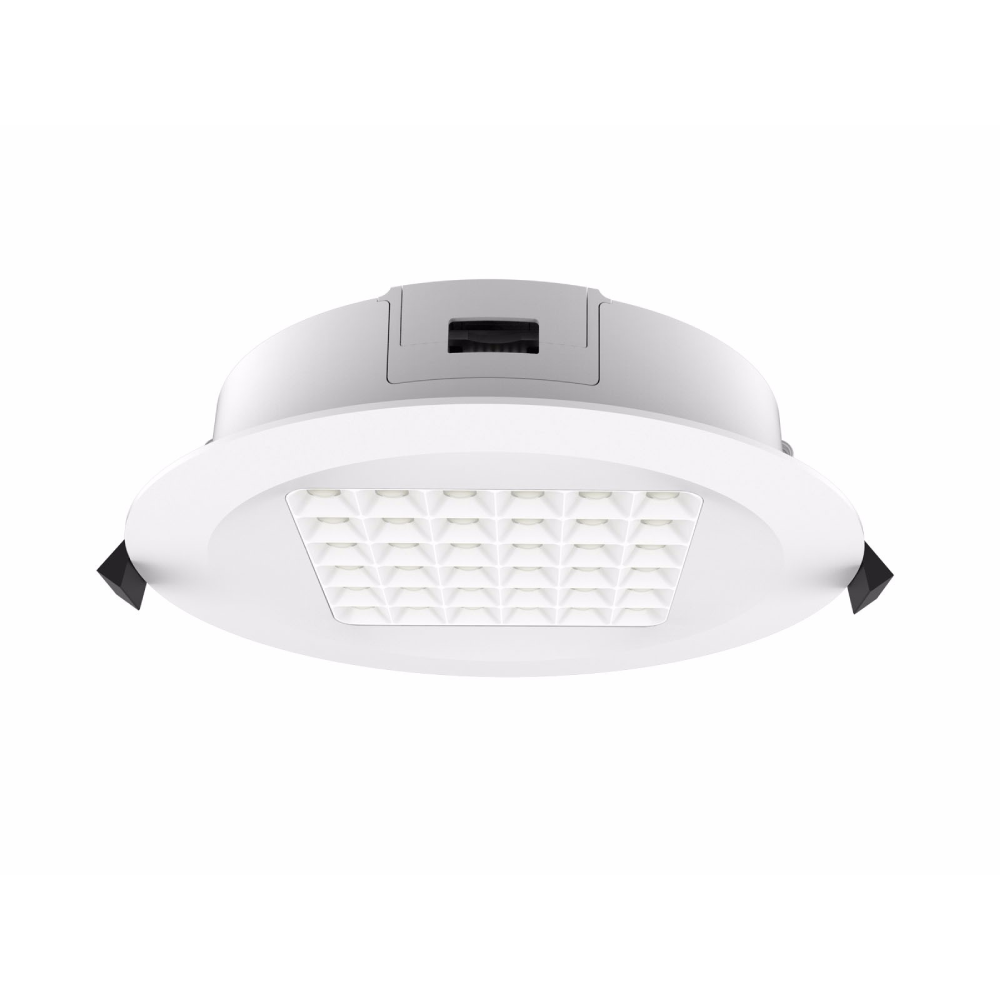

DL96 Ultra Thin Design LED Downlight

DL96 LED Downlight is an ultra thin integrated anti-glare grilling lend downlight. The height is less than 40mm with built-in driver, suitable for various applications. Grilling design effectively reduce the UGR index. Equipped with push button looping connection terminal, the simple structure provides easy access to installation and high security.

DL96

LED DOWNLIGHT

Code	LEDChip	Wattage	BeamAngle	CCT	Lumens	Dimension	Download
UP-DL96-3-10W	SMD	10W	90°	3000K,4000K,5000K,5700K	1000-1070lm	Ø110*40mm cutout 90-95mm	Specification
UP-DL96-6-18W	SMD	18w	90°	3000K,4000K,5000K,5700K	1950-2020lm	Ø190*40mm cutout 160-170mm	Specification
UP-DL96-8-25W	SMD	25w	90°	3000K,4000K,5000K,5700K	2870-3000lm	Ø228*40mm cutout 200-210mm	Specification

DL96 Ultra Thin Design LED Downlight

Description
