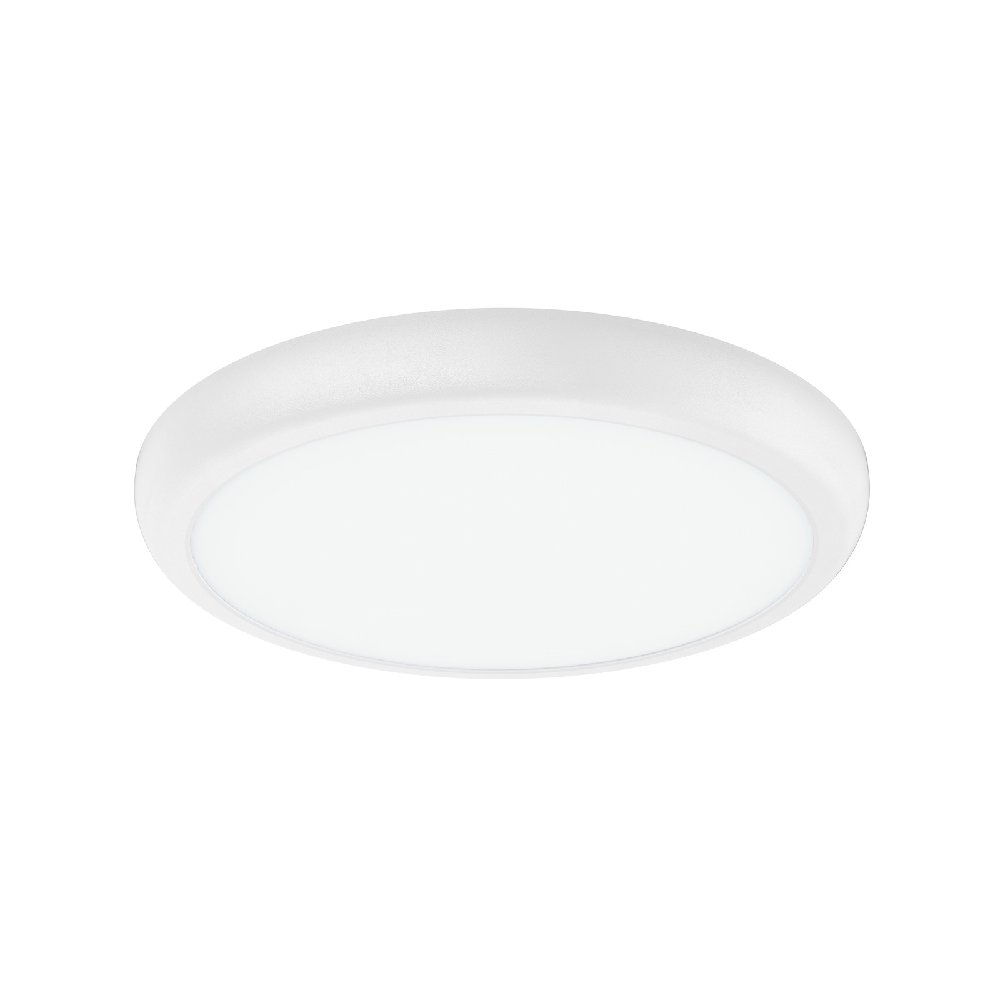

This downlight featured with adjustable cutout size. Adopt high lumen SMD LED and edge lighting design with even light output. AL1060 Aluminum profile provides excellent thermal dissipation. Super slim with internal driver and quick connector, very easy for wire connection and installation, it can be widely used in various application.Recessed and surface mounted installation optional.
SMD downlight features：
| Code No. | DL280-8-16W | DL280-10-22W |
|---|---|---|
| Dimension(mm) | Ø235*22mm | Ø300*25mm |
| Cutout (mm) | Ø65mm-Ø205mm | Ø120mm-Ø260mm |
| Watt(W) | 16W | 22W |
| Rated Input Voltage(V) | Non-Dim:AC100-240V / Dim:AC230V | |
| Input Voltage(V) | Non-Dim:AC100-240V / Dim:AC200-240V | |
| Light Source | SMD | |
| SDCM | <6 | |
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |
| CCT Selection DIP Switch | YES | |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1400-1600 | 2200-2500 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 1400-1600 | 2200-2500 |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1400-1700 | 2200-2600 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 1400-1700 | 2200-2600 |
| 10W:950-1100 13W:1100-1450 16W:1450-1600 | 16W:1600-1800 20W:1900-2200 22W: 2200-2500 | |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 10W:950-1000 13W:1200-1450 16W:1400-1700 | 16W:1500-1800 20W:1900-2200 22W: 2200-2600 |
| CRI | ≥80 | |
| Beam Angle (°) | 120° | |
| LED Driver | Built-in | |
| Dimming Option | Triac | |
| Electrical Class | Class Ⅱ | |
| Ingress Protection (IP Rating) | IP20 | |
| Impact Resistance (IK Rating) | IK06 | |
| Product Finishing(Base) | White RAL 9016 | |
| Materials of Optics | PS | |
| Materials of Housing | PC/Aluminum | |
| Lifetime (hr) | 40,000h | |
| Glow wire test (℃ ) | 650℃ | |
| Operating Temp. (℃ ) | -20℃ ~40℃ | |
| Storage Temp. (℃ ) | -20℃ ~50℃ | |
| Installation | Surface mount / Recessed | |
