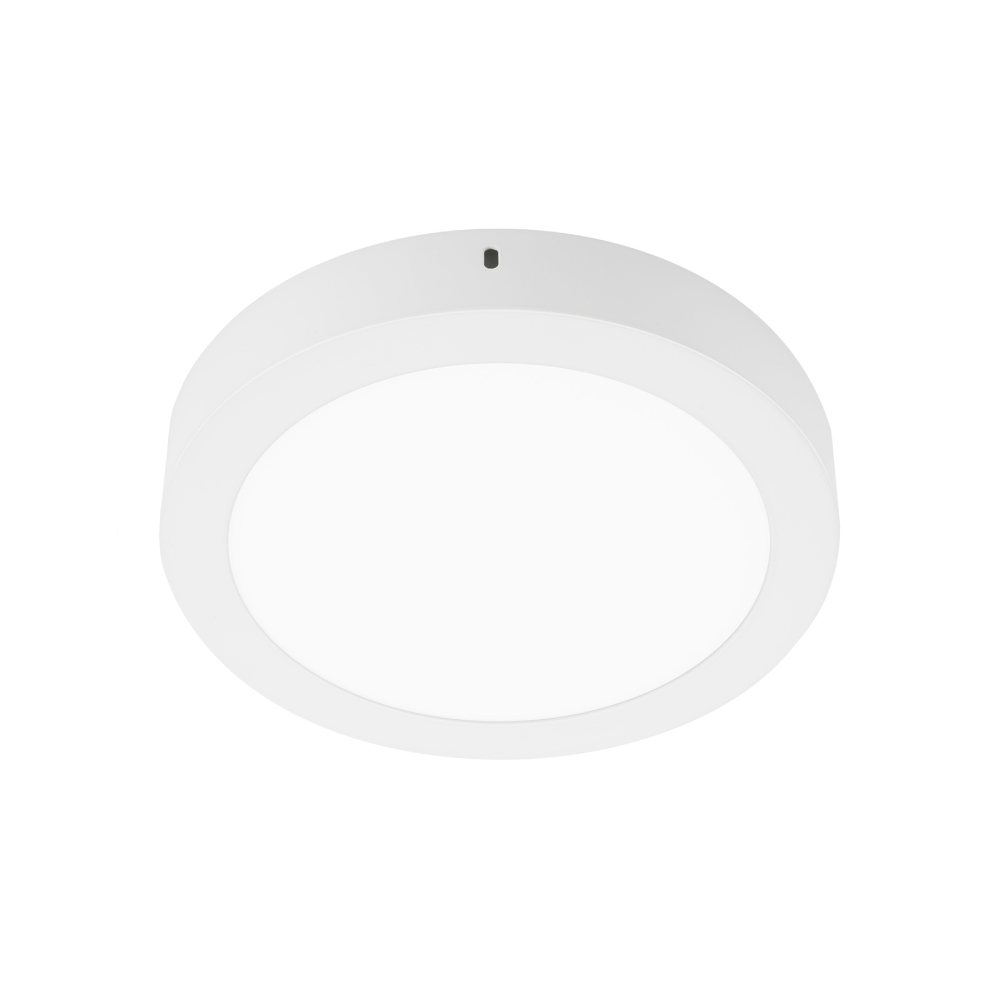

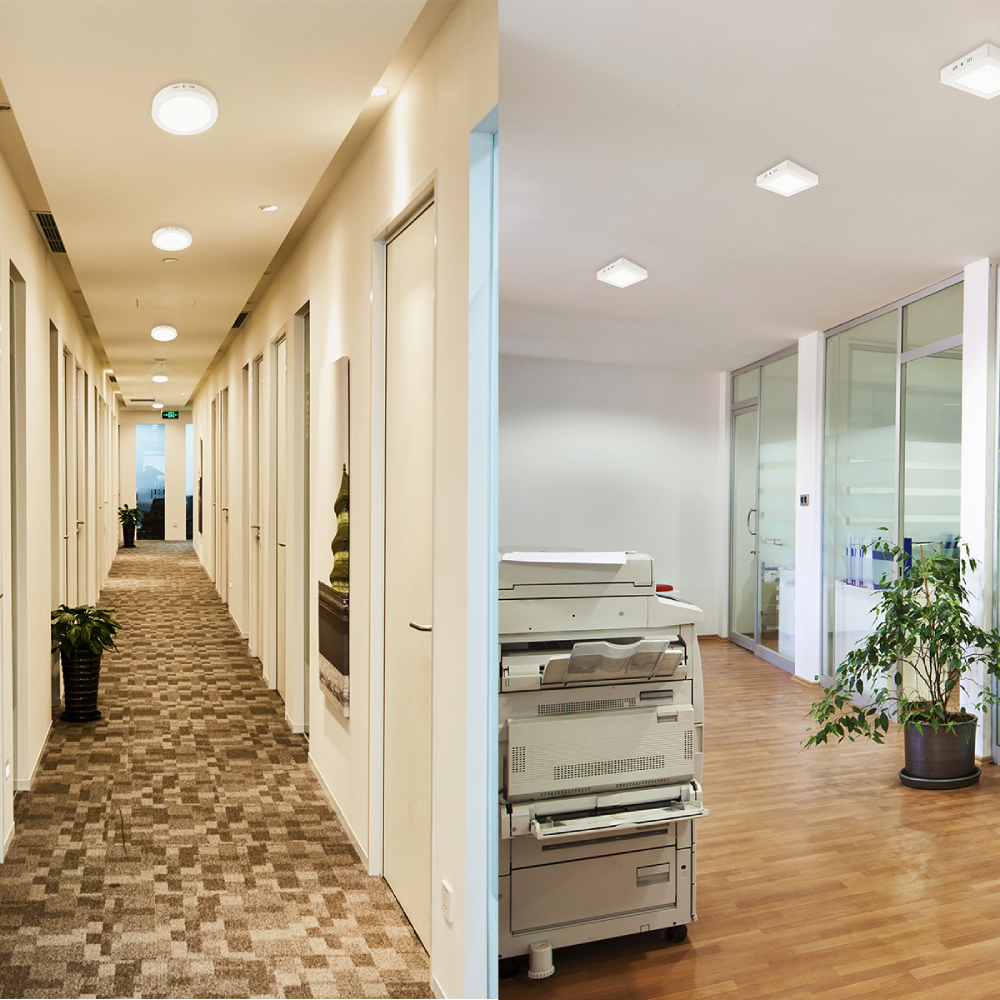

The surface-mounted LED downlight with complete diameter options. 2835SMD LED chip and PMMA LGP offer great light transmittance and light output. Adopt a die-casting aluminum frame which provides great thermal management. The external driver comes with triac dim, it shares great popularity with a perfect dimming range and great compatibility with worldwide dimmers. The ultra-slim profile fits perfectly for all working places.
| Code No. | DL266-6W-S | PL266-12W-S | DL266-18W-S | DL266-24W-S | DL266-6W-R | DL266-12W-R | DL266-18W-R | DL266-24W-R | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 120*120*38 | 170*170*38 | 224*224*38 | 298*298*38 | Ø120*38 | Ø170*38 | Ø224*38 | Ø300*38 | ||
| Watt(W) | 6W | 12W | 18W | 24W | 6W | 12W | 18W | 24W | ||
| Rated Input Voltage(V) | AC230V | |||||||||
| Input Voltage(V) | AC200-240V | |||||||||
| LED Module Input | 30-35VDC | 32-38VDC | 32-38VDC | 32-38VDC | 30-35VDC | 32-38VDC | 32-38VDC | 32-38VDC | ||
| 180MA CC | 300MA CC | 450MA CC | 600MA CC | 180MA CC | 300MA CC | 450MA CC | 600MA CC | |||
| Light Source | SMD | |||||||||
| SDCM | ＜6 | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K/6500K | 3-CCT: 3000K+4000K+5700K | |||||||||
| CCT Selection DIP Switch | Yes | |||||||||
| Non-DIM | 390-500 | 900-1100 | 1400-1700 | 1900-2400 | 390-500 | 900-1100 | 1400-1700 | 1900-2400 | ||
| DIM | 1-CCT | 380-490 | 850-1080 | 1380-1680 | 1850-2350 | 380-490 | 850-1080 | 1380-1680 | 1850-2350 | |
| Luminous Flux | Non-DIM | 380-510 | 850-1100 | 1350-1680 | 1800-2520 | 380-510 | 850-1100 | 1350-1680 | 1800-2520 | |
| (lm) ±5% | DIM | 3-CCT | 360-500 | 830-1080 | 1320-1650 | 1780-2500 | 360-500 | 830-1080 | 1320-1650 | 1780-2500 |
| CRI | ≥80 | |||||||||
| Beam Angle (°) | 120° | |||||||||
| LED Driver | Built-out | |||||||||
| Dimming Option | Triac | |||||||||
| Electrical Class | ClassⅡ | |||||||||
| Ingress Protection (IP Rating) | IP20 | |||||||||
| Product Finishing(Base) | White | |||||||||
| Materials of Optics | PS(Diffuser) | |||||||||
| Materials of Housing | Aluminum | |||||||||
| Lifetime (hr) | 40,000h | |||||||||
| Glow wire test (℃ ) | 650℃ | |||||||||
| Operating Temp. (℃ ) | -20℃ ~40℃ | |||||||||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||||||||
| Installation | Surface mount | |||||||||
