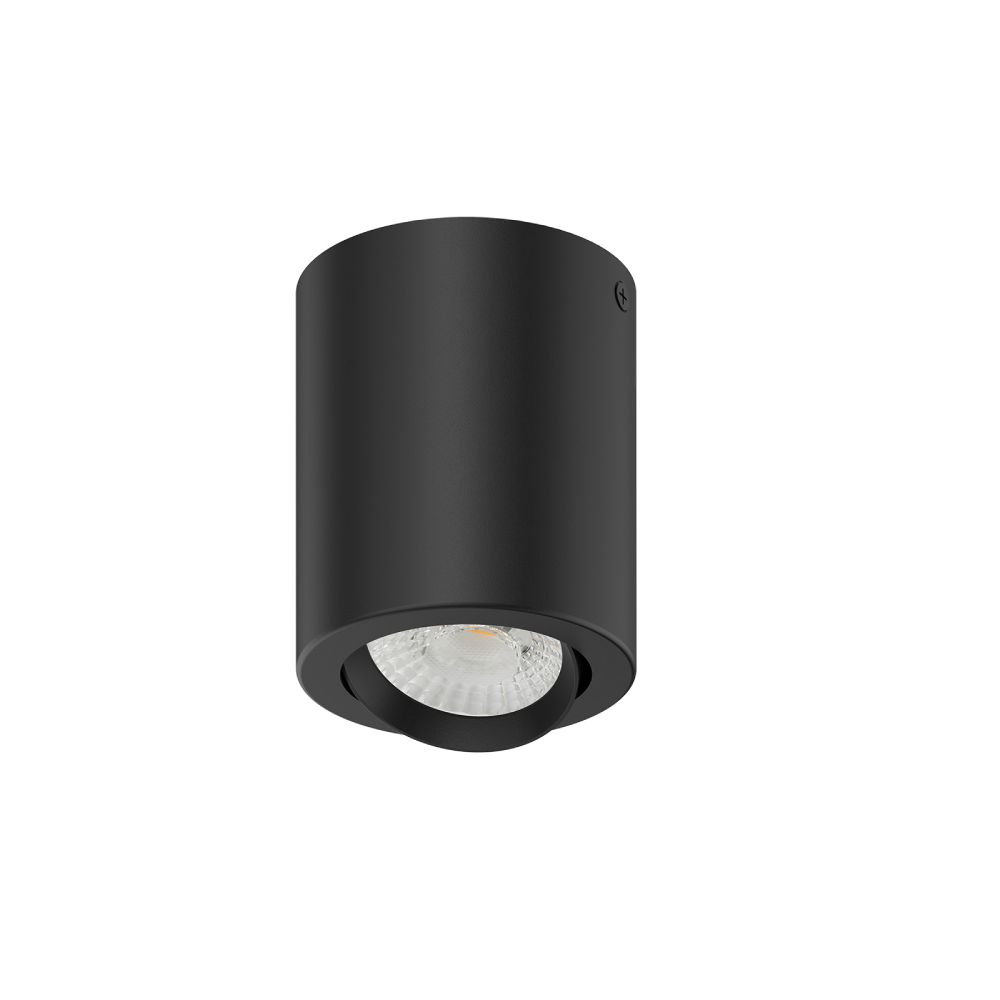

Surface mounted downlight adopts brand COB and a high reflective(more than 88%) reflector, ensuring high luminosity; The ADC12 heat sink and multi-layer structure provide excellent thermal dissipation. Adjustable lighting direction 350°in horizontal and 25° in vertical- offers all possible lighting effects. Builtin driver solution both in dim and Non-dim versions achieves excellent dimming compatibility with the worldwide brand dimmers.
Application Areas: It is designed for general lighting applications in hotels, homes, offices, shops, etc. It is also widely used for public areas such as stairways, lobbies, reception, corridors
| Code No. | DL130-90-6W / DL130B-90-6W | DL130-90-10W / DL130B-90-10W | DL130-115-16W / DL130B-115-16W |
|---|---|---|---|
| Dimension(mm) | Ø90*110 | Ø115*122 | |
| Watt(W) | 6W | 10W | 16W |
| Rated Input Voltage(V) | AC230V | ||
| Input Voltage(V) | AC200-240V | ||
| Light Source | COB | ||
| SDCM | <5 | ||
| CCT(K) | 3-CCT: 3000K + 4000K + 5000K | ||
| CCT Selection DIP Switch | YES | ||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 550-600 | 800-900 | 1250-1500 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 550-600 | 800-900 | 1200-1450 |
| CRI | ≥90 | ||
| Beam Angle (°) | 24° / 36° / 60° | ||
| LED Driver | built-in | ||
| Dimming Option | Triac | ||
| Electrical Class | Class I | ||
| Ingress Protection (IP Rating) | IP20 | ||
| Product Finishing(Base) | Black RAL 9005 | ||
| Materials of Optics | PMMA | ||
| Materials of Housing | Aluminum die-casting | ||
| Lifetime (hr) | 50,000h | ||
| Glow wire test (℃ ) | 650°C | ||
| Operating Temp. (℃ ) | -20℃ ~40℃ | ||
| Storage Temp. (℃ ) | -20℃ ~65℃ | ||
| Installation | Surface mount | ||
