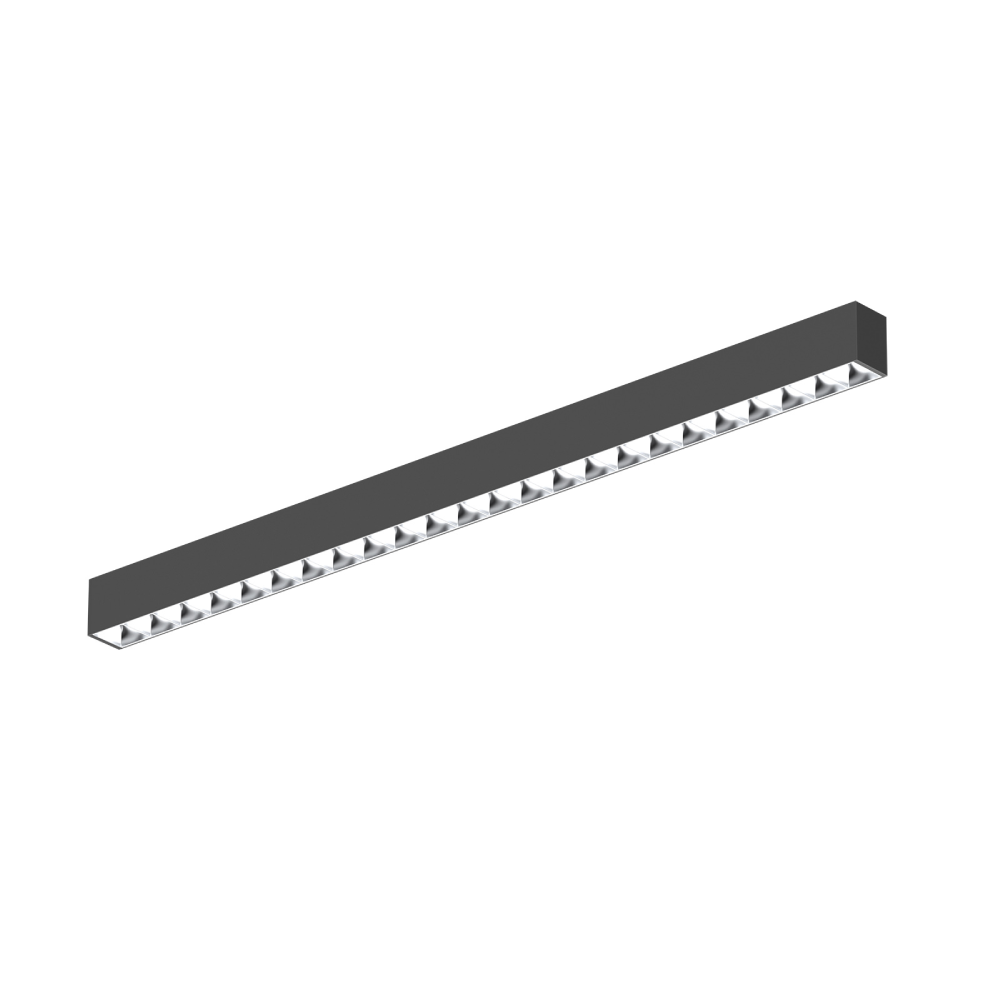

This linear fixture is a seamless splicing design with a straight/corner/cross splicing connector, it can realize a very convenient connection with male and female plug. It adopts a high-lumen SMD light source, a PC grill reflector with an anti-glare UGR<19 effects, and a flicker-free and high-efficiency driver making a better lumen output. Aluminum housing provides excellent thermal management. Functions: Down lighting, up and down lighting, adjustable CCT, 1-10V, DALI dim. Mounting design: Pendant/surface mounted/wall mounted/recessed/Track/ Splicing. Modular design: Replaceable driver.
Application Areas： Its linear fixture is widely used in shopping malls, offices, car parks, stations, homes.
| Code No. | DB77B-1200-48W | DB77B-1500-60W | DB77B-1800-65W | DB77B-2400-96W |
|---|---|---|---|---|
| Dimension(mm) | 1212*57*76 | 1512*57*76 | 1812*57*76 | 2412*57*76 |
| Cutout (mm) (Recessed verson) | 1214*63*76 | 1514*63*76 | 1814*63*76 | 2414*63*76 |
| Watt(W) | 48W | 60W | 65W | 96W |
| Rated Input Voltage(V) | AC220-240V | |||
| Input Voltage(V) | AC198-264V/ AC180-264V | |||
| Light Source | SMD | |||
| SDCM | <6 (@3000K 4000K 5000K) | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |||
| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 4350-4800 | 5400-6000 | 5600-6500 | 8700-9600 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 4350-4800 | 5400-6000 | 5600-6500 | 8700-9600 |
| CRI | 80 | |||
| Beam Angle (°) | direct 65°，indirect 110° | |||
| UGR | <19 | |||
| LED Driver | Built-in | |||
| Dimming Option | DALI / 1-10V | |||
| Electrical Class | Class I | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Product Finishing(Base) | White RAL 9016 | |||
| Materials of Optics | PC | |||
| Materials of Housing | Aluminum | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 750℃ | |||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||
| Installation | Surface mount/ Suspended/ Wall mounted/Recessed/Track | |||
| Code No. | DB77B-1200-36W | DB77B-1500-45W | DB77B-1800-54W | DB77B-2400-72W |
|---|---|---|---|---|
| Dimension(mm) | 1212*57*76 | 1512*57*76 | 1812*57*76 | 2412*57*76 |
| Cutout (mm) (Recessed version) | 1214*63*76 | 1514*63*76 | 1814*63*76 | 2414*63*76 |
| Watt(W) | 36W | 45W | 54W | 72W |
| Rated Input Voltage(V) | AC220-240V | |||
| Input Voltage(V) | AC198-264V/ AC180-264V | |||
| Light Source | SMD | |||
| SDCM | <6 (@3000K 4000K 5000K) | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||
| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 3050-3600 | 3850-4490 | 4600-5400 | 6100-7200 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 3050-3600 | 3850-4490 | 4600-5400 | 6100-7200 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 3050-3650 | 3850-4550 | 4600-5500 | 6100-7300 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 3050-3650 | 3850-4550 | 4600-5500 | 6100-7300 |
| CRI | 80 | |||
| Beam Angle (°) | 65° | |||
| UGR | <19 | |||
| LED Driver | Built-in | |||
| Dimming Option | DALI / 1-10V | |||
| Sensor | No | |||
| Electrical Class | Class I | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Product Finishing(Base) | White RAL 9016 | |||
| Materials of Optics | PC | |||
| Materials of Housing | Aluminum | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 750℃ | |||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||
| Installation | Surface mount/ Supended/ Wall mounted/Recessed/Track | |||
