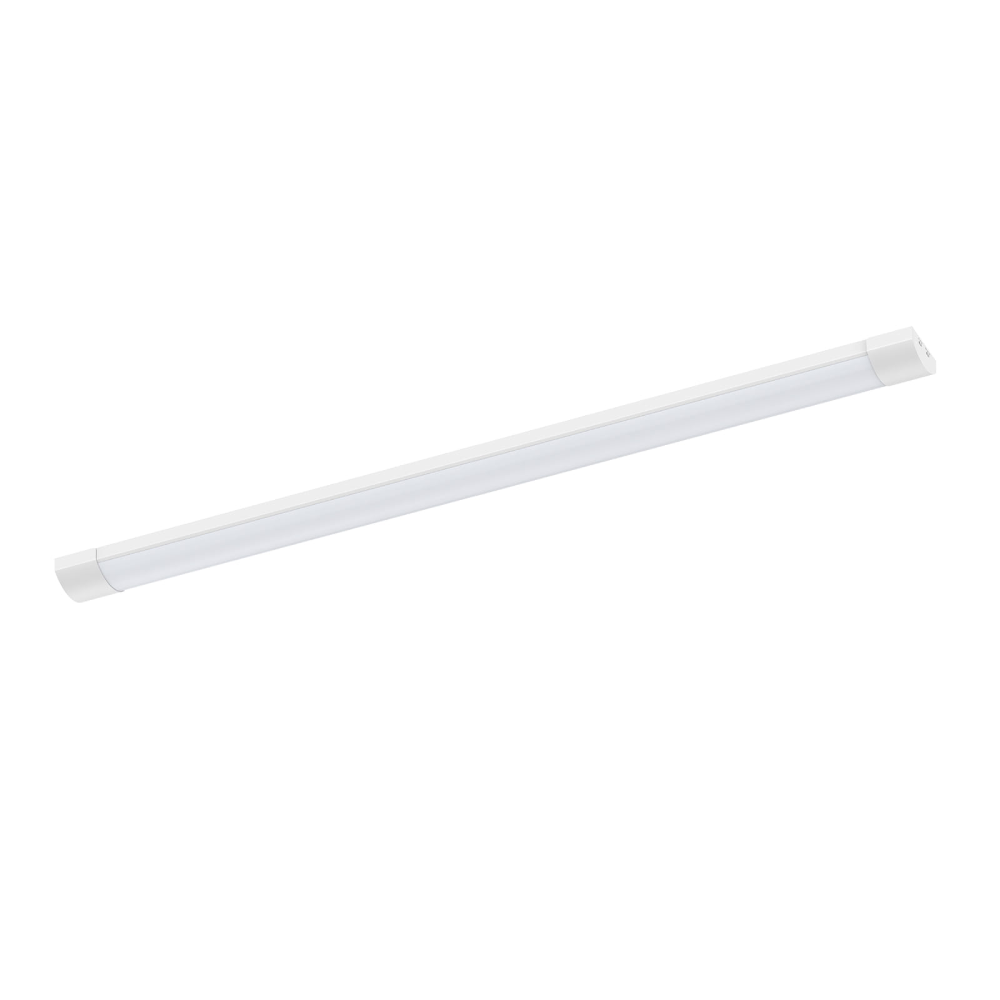

This is a super slim full PC design batten, it adopts a highlight transmittance PC internal stripe design lampshade to ensure uniform light output. The PA12 terminal is compatible with the 2.5m wire, and DIP switch for CCT, and wattage is located on the end cap which is easy to do CCT and wattage adjustment.
Application Areas: It is widely used in workshops, warehouses, parking lot factories, shopping malls, etc.
| Code | DB199-600-18W-A3 | DB199-1200-40W-A3 |
|---|---|---|
| Dimension(mm) | 500*82*35 | 200*82*35 |
| Watt(W) | 10W/14W/18W | 20W/30W/40W |
| Rated Input Voltage | 230VAC | |
| Input Voltage | 220-240VAC | |
| Light Source | SMD | |
| SDCM | <6 | |
| CCT(K) | 1-CCT:3000K/4000K/5000K/5700K ||3-CCT:3000K+4000K+5700K | |
| CCT Selection DIP Switch | Yes | |
| Non-DIM 1-CCT Luminous Flux (lm)±5% CRI80 | 10W:1100-1250 | 20W:2600-2800 |
| 14W:1400-1650 | 30W:3600-3900 | |
| 18W:1900-2050 | 40W:4400-4900 | |
| Non-DIM 3-CCT Luminous Flux (lm)±5% CRI80 | 100W:1100-1250 | 20W:2600-2900 |
| 14W:1400-1700 | 30W:3600-4000 | |
| 18W:1900-2100 | 40W:4400-5000 | |
| CRI | 80 | |
| Beam Angle() | 120° | |
| IED Driver | Driver built-in | |
| Electrical Class | Class I | |
| Ingress Protection(IP Rating | IP20 | |
| Product Finishing | White RAL9016 | |
| Optics Material | PC | |
| Housing Material | PC | |
| Lifetime(hr) | 50,000h | |
| Glow wire test (℃) | 750℃ | |
| Operating Temp.(℃) | -20°℃~40℃ | |
| rage p. (℃) | -20°℃-65℃ | |
| Installation | Surface mount | |
