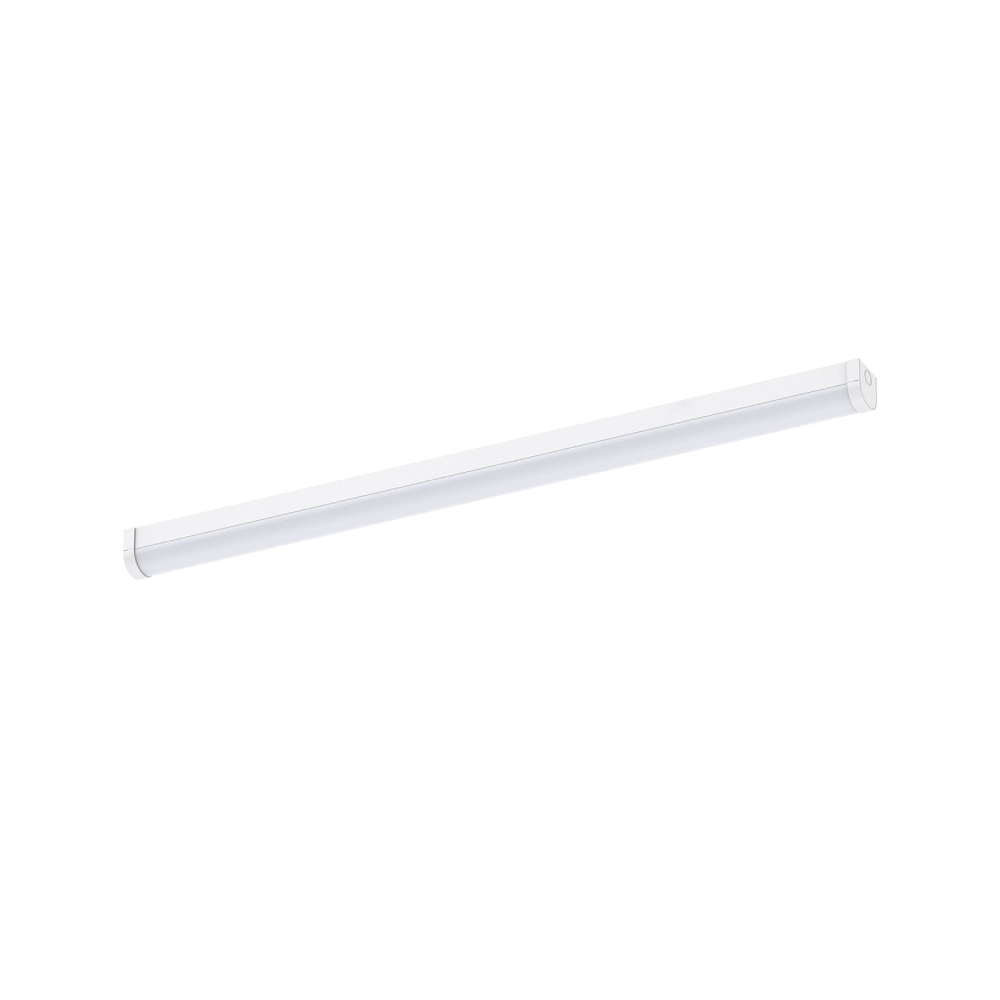

This is a high quality LED batten with high lumen efficiency and modular design. It adopts high lumen efficiency SMD light source, PC cover is internal stripe design which makes a uniform light output. Based on adjustable CCT and adjustable power functions, it has plug in/plug out modular with microwave sensor, emergency, microwave sensor+emergency which can be stocked as accessory. For installation, it utilizes plastic flexibility to clips the light source part into bracket, the end cap mounting hole allows loop in/ loop out connection, which offers more possibility for wider applications.
Application Areas: It is widely used in workshop, warehouse, parking lot, factories, shopping malletc.
| Code | DB186A-1200-40W DB186B-1200-40W | DB186A-1500-50W DB186B-1500-50W | DB186A-1800-60W DB186B-1800-60W |
|---|---|---|---|
| Dimension(mm) | 1200*65*66 | 1500*65*66 | 1800*65*66 |
| Watt(W) | 40W@max (optional:35W / | 50W@max (optional:40W / | 60W@max (optional:50W / |
| 25W / 20W) | 35W / 25W) | 40W / 30W) | |
| Rated Input Voltage | AC 220-240V | ||
| Input Voltage | AC 198-264V | ||
| Light Source | SMD | ||
| SDCM | < 6 | ||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||
| CCT Selection DIP Switch | YES | ||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% CRI80 | 20W: 2800-3100 25W: 3550-3850 35W: 4950-5250 40W: 5600-6000 |
25W: 3600-3900 35W: 4950-5400 40W: 5650-6100 50W: 7000-7500 |
30W: 4400-4800 40W: 5600-6000 50W: 7000-7500 60W: 8400-9000 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% CRI80 | 20W: 2800-3100 25W: 3550-3850 35W: 4950-5250 40W: 5600-6000 |
25W: 3600-3900 35W: 4950-5400 40W: 5650-6100 50W: 7000-7500 |
30W: 4400-4800 40W: 5600-6000 50W: 7000-7500 60W: 8400-9000 |
| CRI | 80 | ||
| Beam Angle (°) | 120° | ||
| LED Driver | Driver built-in | ||
| Sensor | Microwave sensor | ||
| Emergency Kits | YES | ||
| Electrical Class | Class I | ||
| Ingress Protection(IP Rating) | IP20 | ||
| Impact Resistance(IK Rating) | IK06 | ||
| Product Finishing | White RAL 9016 | ||
| Optics Material | PC | ||
| Housing Material | PC / SPCC | ||
| Lifetime (hr) | 50,000H | ||
| Glow wire test (°C) | 750°C | ||
| Operating Temp.(°C) | -20~40° | ||
| Storage Temp.(°C) | -20~65° | ||
| Installation | Surface mount / Pendant | ||
