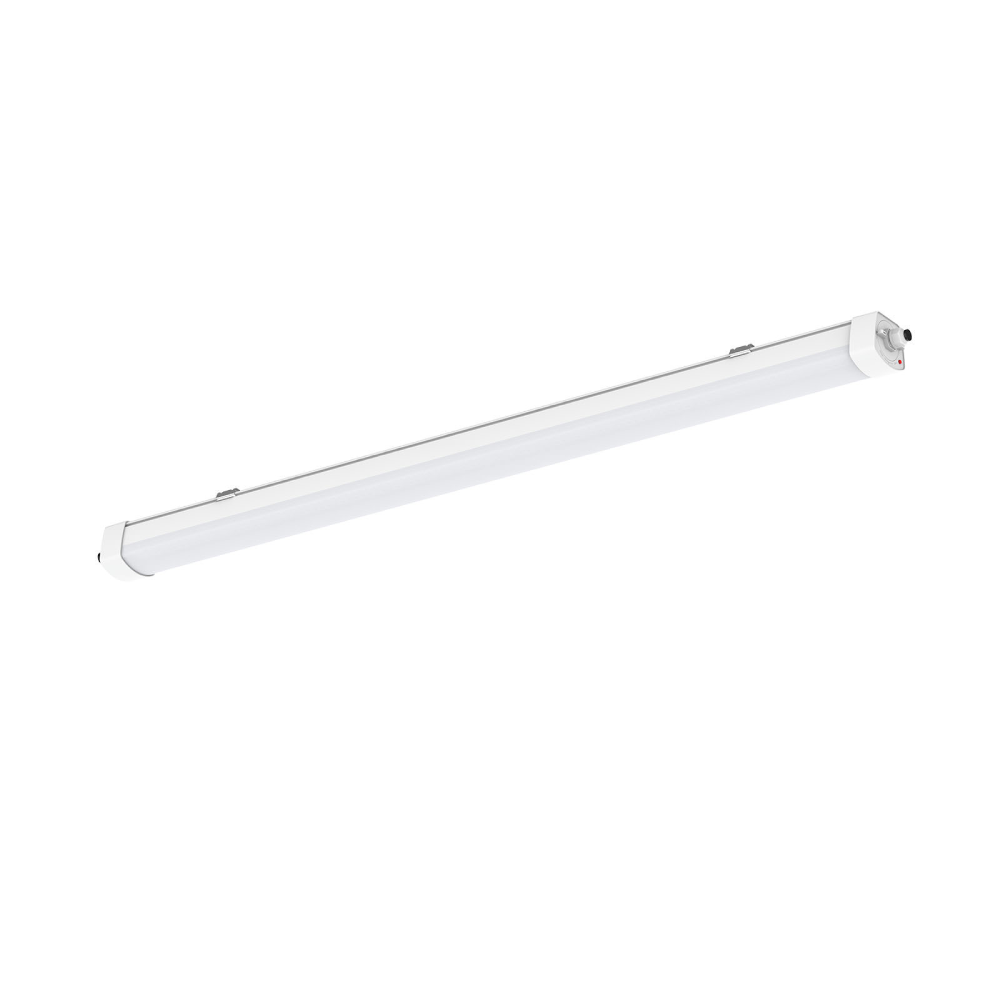

DB145 is a high-quality LED batten with a high luminous efficacy of 150lm/w. With a reliable and robust housing structure (IK08 & IP65), this maximizes endurance and contributes to its long lifetime. With its flexible installation accessories, it can be installed as surface mounting, pendant, and splicing, which can be used in wider applications. Three size options: 1200mm, 1500mm, and 1800mm, it’s an ideal replacement for the traditional fluorescent batten.
Application Areas: This linear fixture is widely used in shopping malls, offices, car parks, stations, homes.
| Code No. | DB145-1200-38W | DB145-1500-52W | DB145-1500-68W | DB145-1800-68W |
|---|---|---|---|---|
| Dimension(mm) | 1200*77*69 | 1500*77*69 | 1800*77*69 | |
| Watt(W) | 38W | 52W | 68W | 68W |
| Rated Input Voltage(V) | AC230V | |||
| Input Voltage(V) | AC220-240V | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT:3000K+4000K+5700K | |||
| CCT Selection DIP Switch | Yes | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 5200-5600 | 7500-7900 | 9200-9800 | 9200-9800 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 5000-5500 | 7300-7700 | – | 9000-9600 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 5200-5700 | 7500-8000 | – | 9200-10000 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 5000-5500 | 7300-7900 | 9000-9800 | |
| CRI | 80 | |||
| Beam Angle (°) | 120° | |||
| LED Driver | Built-in | |||
| Dimming Option | DALI | |||
| Sensor | Microwave sensor+Daylight sensor | |||
| Emergency Kits | Yes | |||
| Electrical Class | Class I I | |||
| Ingress Protection (IP Rating) | IP65 | |||
| Impact Resistance (IK Rating) | IK08 | |||
| Product Finishing(Base) | White RAL9016 | |||
| Materials of Optics | PC | |||
| Materials of Housing | PC | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 750℃ | |||
| Operating Temp. (℃ ) | -20℃ ~40℃ | |||
| Storage Temp. (℃ ) | -20℃ ~60℃ | |||
| Installation | Surface mount/ Pendant | |||
