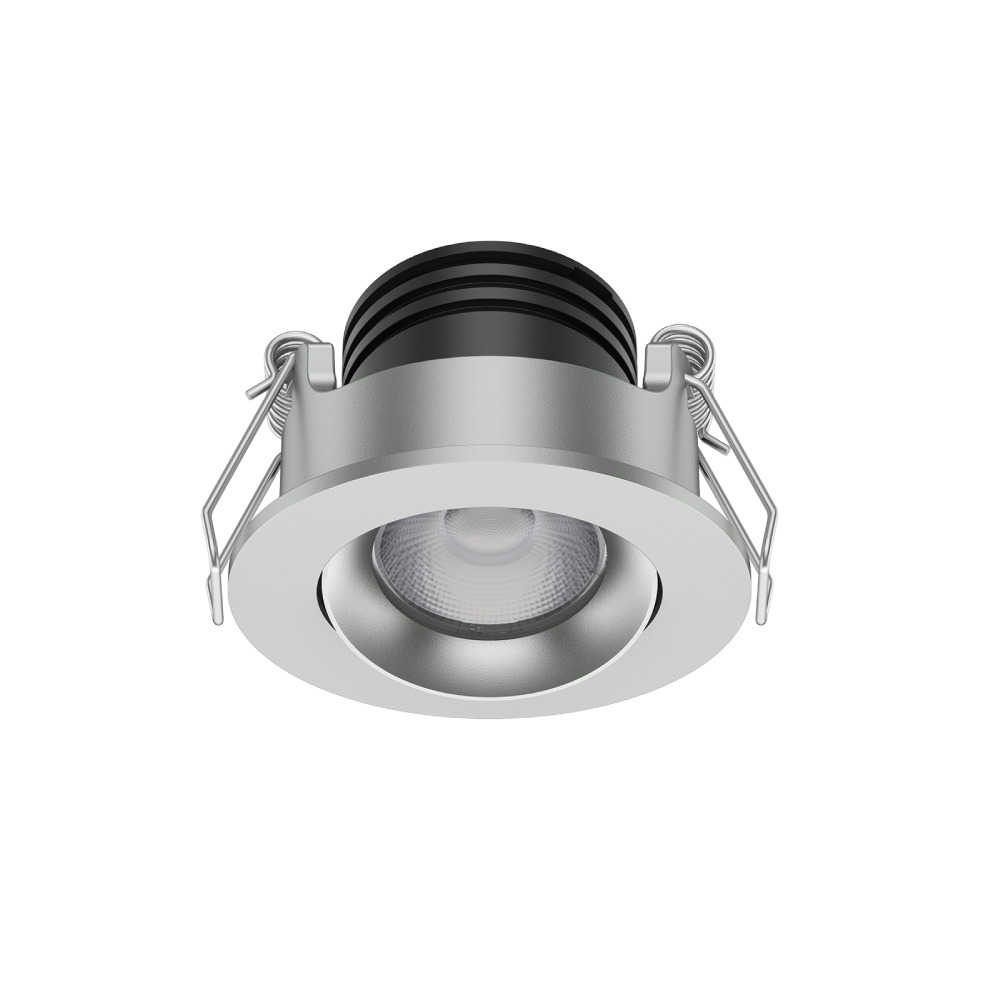

This is a mini and exquisite cabinet lamp with a low height of 34mm. It’s equipped with a DC24V light source, a 20-degree tilted design, and a waterproof fast connector, so it can do an easy parallel connection and achieve one power supply with one lamp or multiple lamps, minimizing the source of failure and simplifying the troubleshooting. IP54 waterproof in the front part, which meets the needs of different occasions and different styles of buildings, such
as balconies, corridors, living rooms, and showrooms.
Application Areas: It is suitable for many indoor applications such as display cabinets, shopping mall counters, homes, villas, hotels, etc.
| Code No. | CL161-1.8-4W |
|---|---|
| Dimension(mm) | Ø50*H34 |
| Cutout (mm) | Ø45 |
| Watt(W) | 4W |
| LED Module Input | 0. 155A |
| Light Source | SMD |
| SDCM | <6 |
| CCT(K) | 1-CCT: 3000K/4000K/5000K /5700K |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 320-380 |
| CRI | Ra>80 |
| Beam Angle (°) | 32° |
| Electrical Class | Class III |
| Ingress Protection (IP Rating) | IP54(only for the LED cover), IP20(for other part) |
| Product Finishing(Base) | Silver RAL9006 |
| Materials of Optics | PMMA |
| Materials of Housing | Aluminum Die-casting |
| Lifetime (hr) | 50,000h |
| Glow wire test (°C) | 750°C |
| Operating Temp. (°C) | -20°C~45°C |
| Storage Temp. (°C) | -20°C~65°C |
| Installation | Recessed |
