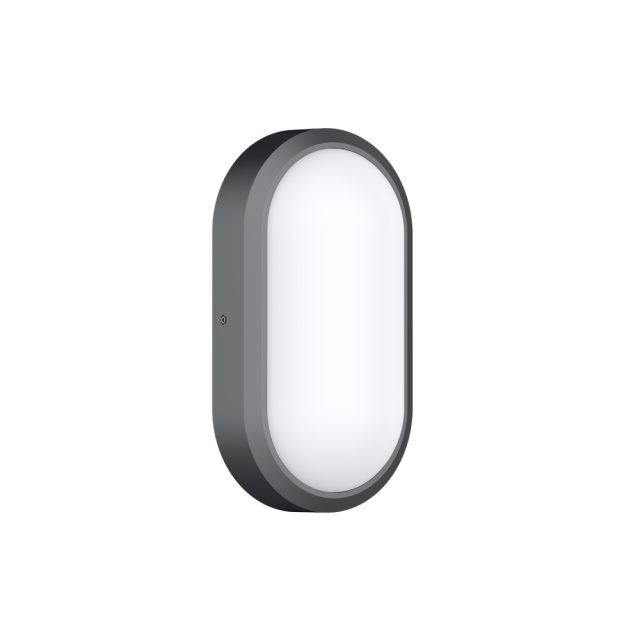

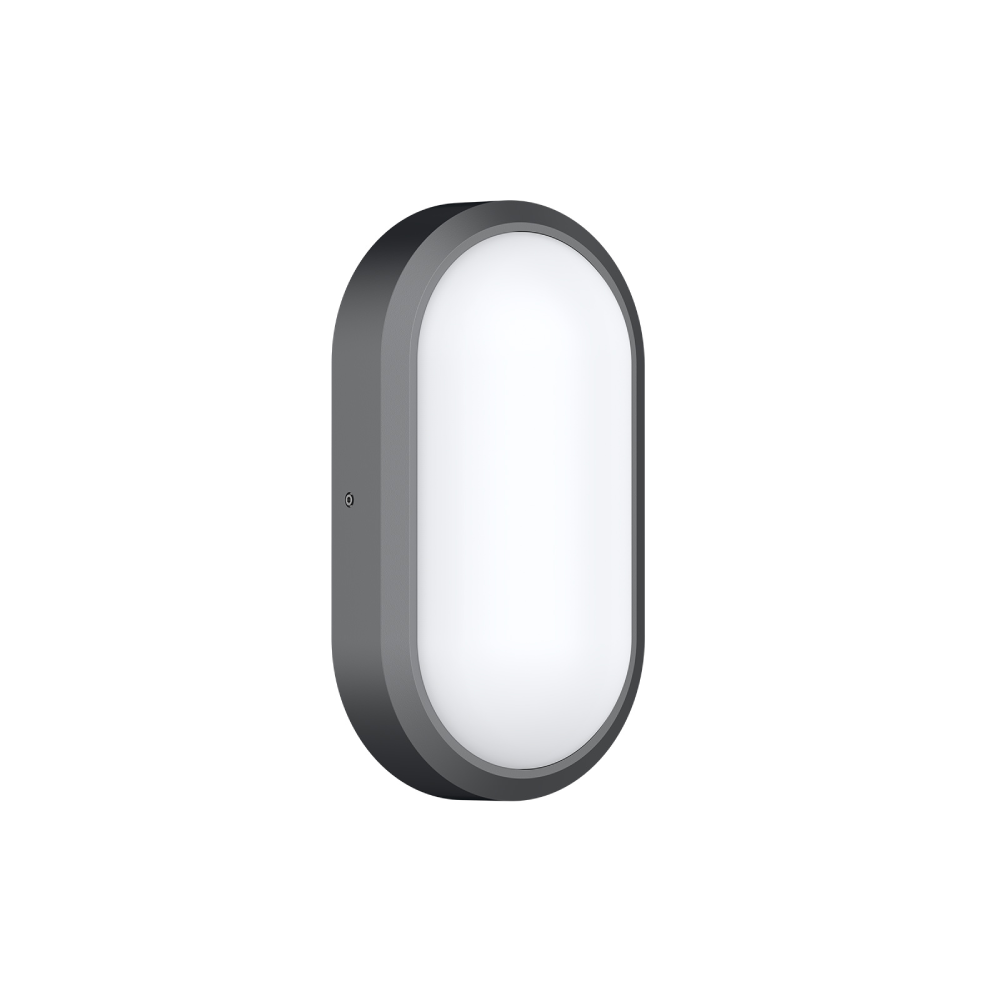

This is an oval wall lamp for outdoor wall decoration. It has no screws on the surface but with IP65 waterproof effect, the whole structure is corrosion resistant, aging resistant, and IK08 protection level. Milky white PC frosted lampshade, no shadows, and even soft lighting. Quick press connectors and multiple-hole options provide flexible installation demands. The grill surface frame and hollow surface frame can be DIY changed. PIR sensors and CCT adjustable versions are also available to reach greater demand and save energy.
Application Areas: It’s widely used in townhouses, hotels, restaurants, gardens, pathways, etc.
| Model No. | AL91F-8-5W | AL91F-8-10W | ||
|---|---|---|---|---|
| Dimension(mm) | 220*120*66 | 220*120*69 | 220*120*66 | 220*120*69 |
| Watt(W) | 5W | 10W | ||
| Rated Input Voltage(V) | AC230V | |||
| Input Voltage(V) | AC220-240V | |||
| Light Source |
SMD
|
|||
| SDCM | ≤6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||
| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT | 500-600 | 400-500 | 900- 1100 | 700-900 |
| Non-DIM 1-CCT | 500-600 | 400-500 | 900- 1100 | 700-900 |
| CRI | >80 | |||
| Beam Angle (°) | 120° | |||
| LED Driver | Built-in | |||
| Sensor | PIR sensor | |||
| Electrical Class | Class II | |||
| Ingress Protection (IP Rating) | IP65 | |||
| Impact Resistance (IK Rating) | IK08 (non-sensor type only) | |||
| Product Finishing(Base) | Black RAL 9005 / White RAL 9016 | |||
| Materials of Optics | PC | |||
| Materials of Housing | PC | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (°C) | 850°C | |||
| Operating Temp. (°C) | -20°C~45°C | |||
| Storage Temp. (°C) | -20°C~65°C | |||
| Installation | Wall mount | |||
