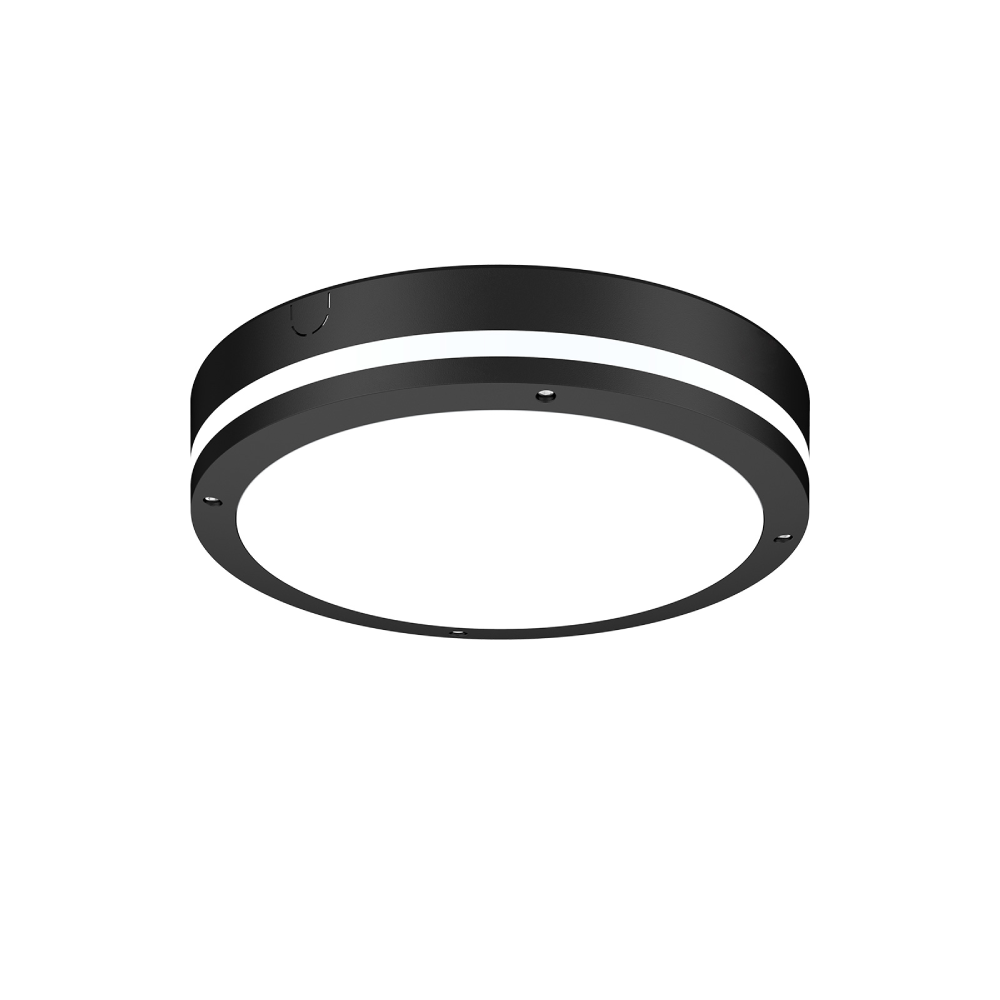

This ceiling light has round and half-round shapes, modular design makes the cover can be easily replaced. It has a larger lighting area, down lighting, and side lighting. Adopt high-lumen SMD LED and lighter-weight fire-rated material to ensure better heat resistance and corrosion resistance. Multiple functions: Interchangeable CCT, interchangeable power, sensor, emergency. The lamp cover and driver are detachable which make easier maintenance and installation.
LED ceiling light features:
| Code No. | AL91E-11-12W | AL91E-11-18W | AL91E-11-25W | AL91E-11-12W | AL91E-11-18W | AL91E-11-25W |
|---|---|---|---|---|---|---|
| (Circular) | (Circular) | (Circular) | (Semicircle) | (Semicircle) | (Semicircle) | |
| Dimension(mm) | Ø275*67 | Ø275*68 | ||||
| Watt(W) | 12W | 18W | 25W | 12W | 18W | 25W |
| Rated Input Voltage(V) | AC100-240V || AC230V | |||||
| Input Voltage(V) | AC85-265V || AC200-240V | |||||
| Light Source | SMD | |||||
| SDCM | <6 (@3000K 4000K 5000K) | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||||
| CCT Selection DIP Switch | YES | |||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 920-1120 | 1400-1620 | 1920-2200 | 600-720 | 900-1080 | 1250-1460 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 900-1100 | 1360-1580 | 1880-2150 | 580-700 | 880-1050 | 1220-1400 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 920-1150 | 1400-1650 | 1920-2250 | 600-750 | 900-1100 | 1250-1550 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 900-1130 | 1360-1620 | 1880-2200 | 580-725 | 880-1080 | 1220-1500 |
| CRI | 80 | |||||
| Beam Angle (°) | 110° | |||||
| LED Driver | Built-in | |||||
| Dimming Option | Triac/ DALI/ 0-10V | |||||
| Sensor | adjustable sensor | |||||
| Emergency Kits | YES | |||||
| Electrical Class | Class II | |||||
| Ingress Protection (IP Rating) | IP65 | |||||
| Impact Resistance (IK Rating) | IK10 | |||||
| Product Finishing(Base) | BLACK RAL 9005 / WHITE RAL9016 | |||||
| Materials of Optics | PC | |||||
| Materials of Housing | PC | |||||
| Lifetime (hr) | 50,000h @ L70B50 | |||||
| Glow wire test (℃ ) | 750℃ (Cover) 850℃ (Lamp Base) | |||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||||
| Installation | Surface mount | |||||
