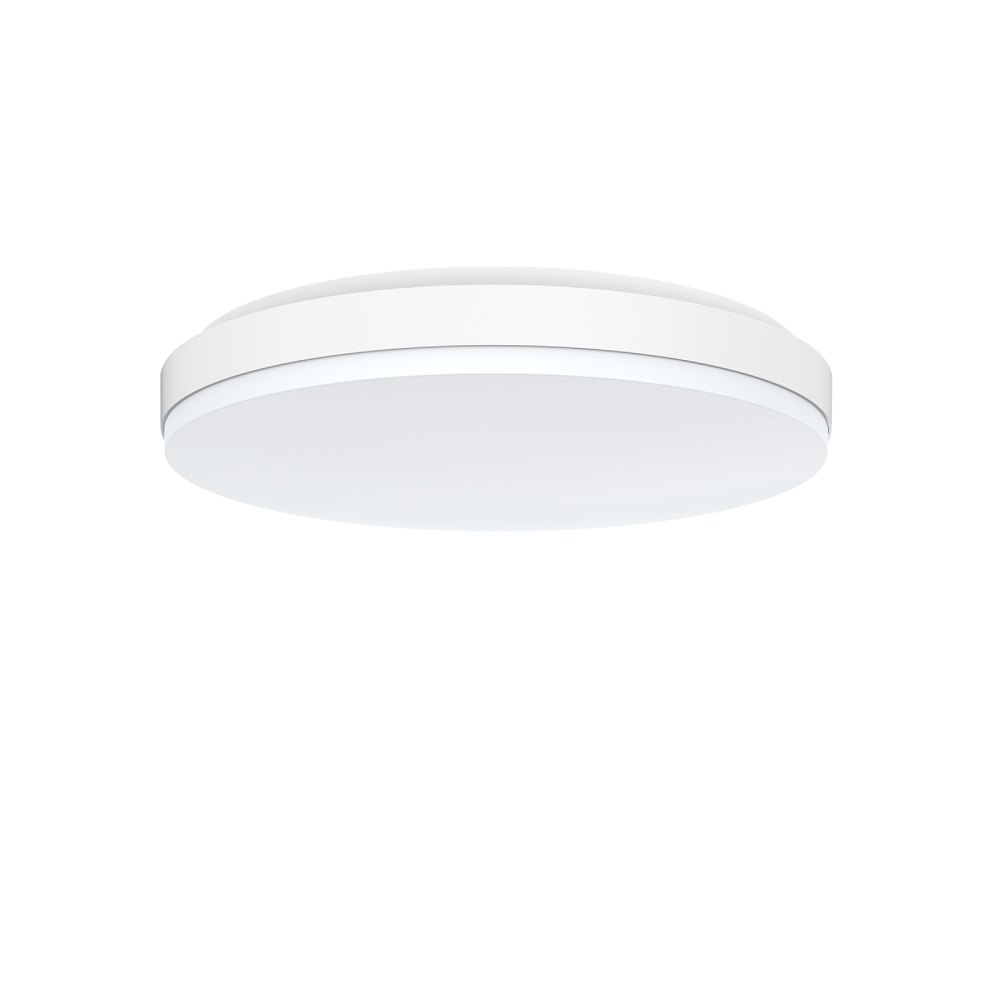

AL87 is a new super slim design ceiling light, adopting high lumen SMD LED and lighter weight fire-rated material to ensure better heat resistance and corrosion resistance. The base and shade are detachable which makes easier maintenance and installation. It also supports functions as below:
Dimming: Triac, 0-10V, DALI dimming
3 CCT: 3 CCT in one lamp, CCT changed by DIP
switch(optional).
Changeable power: power changed by DIP
switch(optional).
S: Adjustable sensor
E: Emergency (Self-test)
Application Areas： It is designed for general lighting applications in offices, supermarkets, shops, schools, hotels, etc. It is also widely used for public areas, such as stairways, lobbies, reception, corridors, etc.
| Code No. | AL87-11-12W | AL87-11-18W | AL87-11-25W | AL87-14-25W | AL87-14-30W |
|---|---|---|---|---|---|
| Watt(W) | 12W | 18W | 25W | 25W | 30W |
| Dimension(mm) | Ø275*65 | Ø350*65 | |||
| Rated Input Voltage(V) | AC100-240V || AC230V | ||||
| Input Voltage(V) | AC85-265V || AC200-240V | ||||
| LED | SMD | ||||
| SDCM | <6 (@ 3000K 4000K 5000K) | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||
| Non-DIM 1CCT "Luminous Flux (lm) ±5% | 1200~1440 | 1750~2100 | 2400~2900 | 2400~2800 | 2900~3200 |
| DIM 1CCT "Luminous Flux (lm) ±5% | 1180~1420 | 1700~2000 | 2350~2850 | 2350~2750 | 2850~3150 |
| Non-DIM 3CCT "Luminous Flux (lm) ±5% | 1200~1460 | 1750~2200 | 2400~3000 | 2400~2900 | 2900~3300 |
| DIM 3CCT "Luminous Flux (lm) ±5% | 1200~1440 | 1700~2100 | 2350~2900 | 2350~2800 | 2850~3200 |
| CRI | ≥80 | ||||
| Beam Angle (°) | 120° | ||||
| LED Driver | Built-in | ||||
| DIM | Triac / 0-10V / DALI | ||||
| Microwave Sensor | Yes | ||||
| Emergency Kits | Yes | ||||
| CCT Selection Switch | Yes | ||||
| Protection Class | Class Ⅱ | ||||
| IP Rating | IP54 | ||||
| IK Rating | IK08 | ||||
| Finishing color | White RAL 9016 | ||||
| Material | PP | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (°C) | 750℃ (Cover) / 850℃ (Lamp Base) | ||||
| Operating Temp.(°C) | -20℃ ~45℃ | ||||
| Storage Temp.(°C) | -20℃ ~65℃ | ||||
| Installation | Surface mount | ||||
