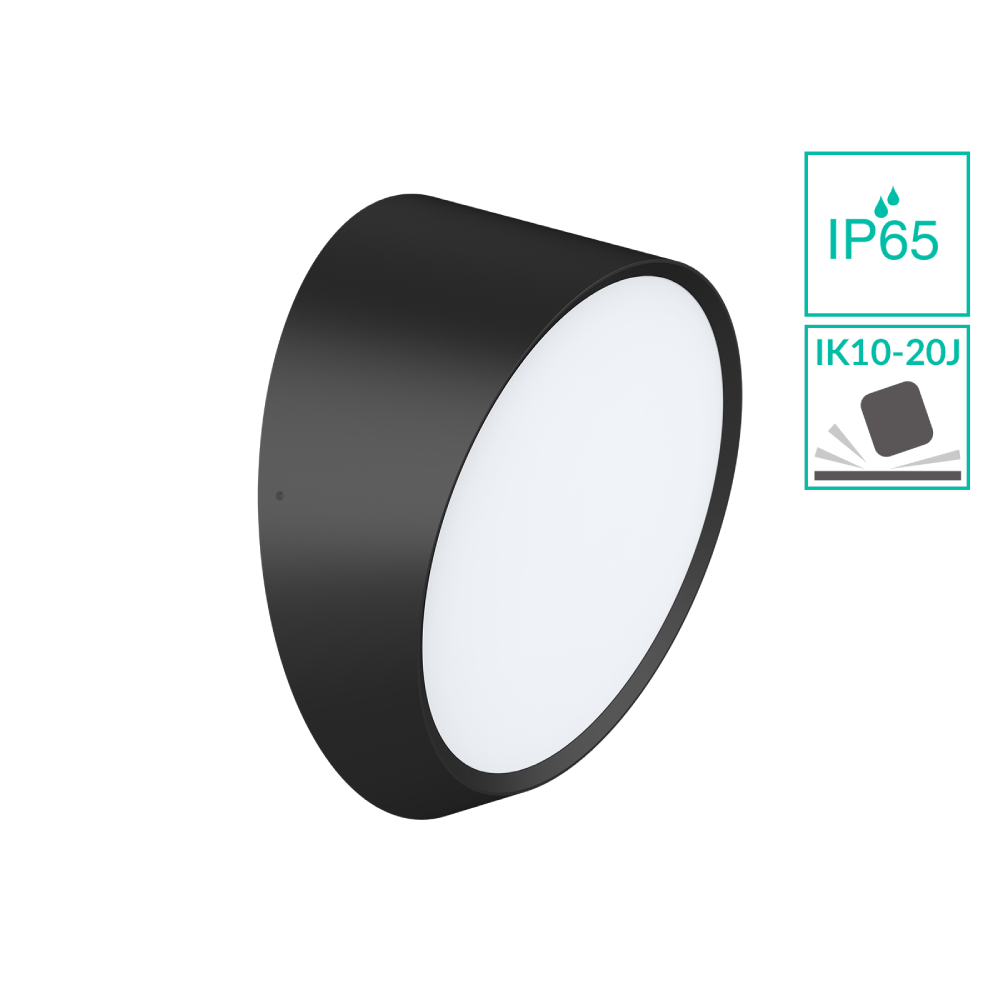

The lamp body and base of this bulkhead are made of alloy ADC12, and the transparent impact-resistant PC cover can reach the protection of IK10(20 joules of energy). Lamp structure is silicone ring with screws fixed to ensure the waterproof level of IP65.
Application: It is designed for public ares such as stations, parks, pathways, driveways, underpasses, canopies and parking lots.
| Code No. | AL65D-10-15W |
|---|---|
| Dimension(mm) | Ø250*116 |
| Watt(W) | 15W |
| Light Source | SMD |
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K || 3-CCT: 3000K + 4000K + 5700K |
| CCT Selection DIP Switch | YES |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1130-1400 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 1100-1300 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 1130-1400 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 1100-1300 |
| Beam Angle (°) | 110° |
| N.W/PC(KG) | 1.1 |
| G.W/CTN(KG) | 17.4 |
| Qty/CTN (PCS) | 12 |
| Carton Size(mm) | 530*530*400 |
