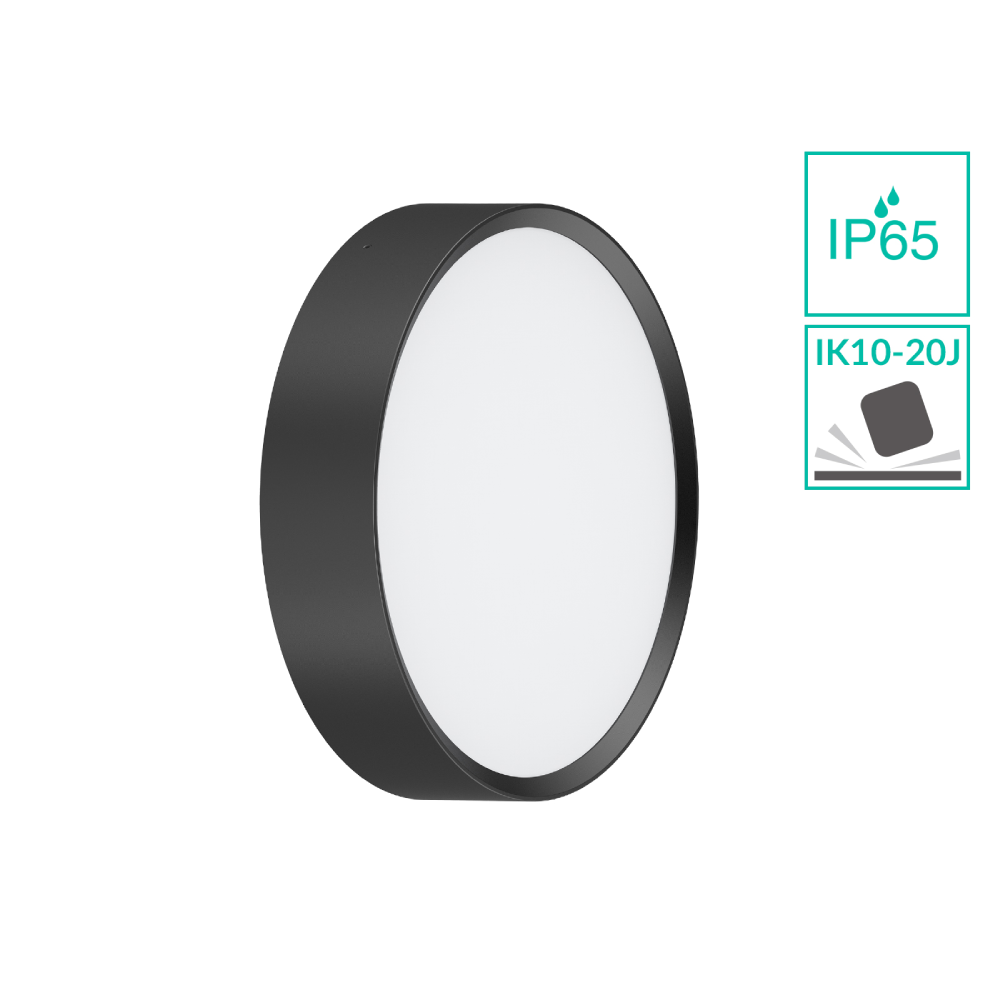

The lamp body and base of this bulkhead are made of alloy ADC12, and the transparent impact-resistant PC cover can reach the protection of IK10(20 joules of energy). Lamp
structure is silicone ring with screws fixed to ensure the waterproof level of IP65.
Application： It is designed for public ares such as stations, parks, pathways, driveways,underpasses, canopies and parking lots.
| Code No. | AL65-10-18W |
|---|---|
| Dimension(mm) | Ø250*58 |
| Watt(W) | 18W |
| Light Source | SMD |
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K || 3-CCT: 3000K + 4000K + 5700K |
| CCT Selection DIP Switch | YES |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1500-1850 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 1450-1800 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 1450-1800 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 1400-1750 |
| Beam Angle (°) | 110° |
| N.W/PC(KG) | 1.05 |
| G.W/CTN(KG) | 13.5 |
| Qty/CTN (PCS) | 10 |
| Carton Size(mm) | 590*425*295 |
