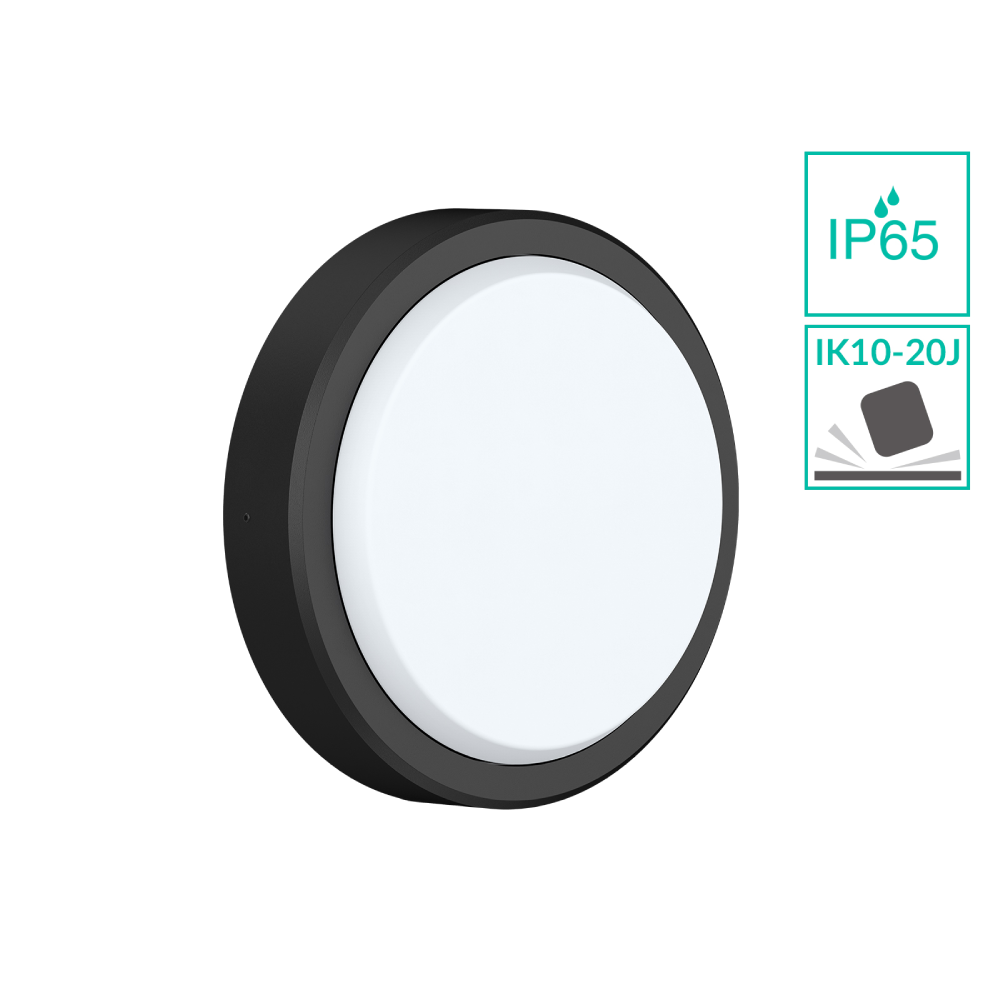

The lamp body and base of this bulkhead are made of alloy ADC12, and the transparent impact-resistant PC cover can reach the protection of IK10(20 joules of energy). Lamp the structure is a silicone ring with screws fixed to ensure a waterproof level of IP65.
Applications: It is designed for public areas such as stations, parks, pathways, driveways, underpasses, canopies, and parking lots.
| Code No. | AL104-10-15W | AL104-12-25W-A2 |
|---|---|---|
| Dimension(mm) | Ø250*63 | Ø300*63 |
| Cutout (mm) | - | |
| Watt(W) | 15W | 20W/25W |
| Light Source | SMD | |
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K || 3-CCT: 3000K + 4000K + 5700K | |
| CCT Selection DIP Switch | YES | |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1550-1750 | 20W:2050-2350 |
| 25W:2550-2950 | ||
| DIM 1-CCT Luminous Flux (lm) ±5% | 1500-1700 | 20W:2100-2350 |
| 25W:2600-3000 | ||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 1550-1750 | 20W:2050-2350 |
| 25W:2550-2950 | ||
| DIM 3-CCT Luminous Flux (lm) ±5% | 1500-1700 | 20W:2100-2350 |
| 25W:2600-3000 | ||
| Beam Angle (°) | 120° | |
| N.W/PC(KG) | 1.05 | 1.58 |
| G.W/CTN(KG) | 14.4 | 12.8 |
| Qty/CTN (PCS) | 10 | 6 |
| Carton Size(mm) | 590*440*295 | 545*350*355 |
